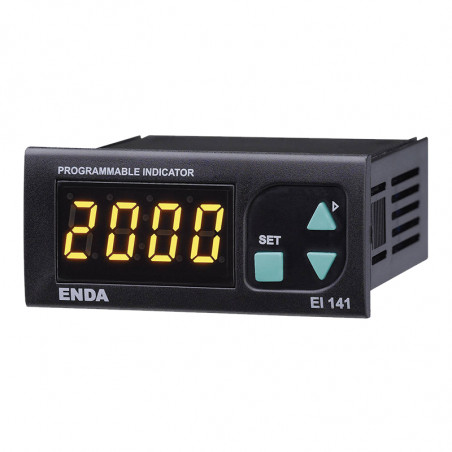

Programovatelný Ukazatel EI141
Programovatelný Ukazatel EI141

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Sisel

Programovatelný Ukazatel EI141

Dimensions:
35x77mm.
Display:
4 digits.
Easy to use by front panel keypad.
Display scale can be adjusted between -1999 and 4000.
Decimal point can be adjusted between 1. and 3. digits.
Selectable four different standard input types (0-20mA, 4-20mA, 0-1V, 0-10V)
Maximum and minimum measurement values are registered..
The maximum or the minimum values can be hold on the display.


Technical data
- Supply
230V AC +10% -20% or 12/24V AC ±10%, 50/60Hz or optional 9-30V DC / 7-24V AC ±10% SMPS.
- Power consumption
Max 7VA
- Data storage
EPROM(min. lO years)
- Assembly
Panel
- Dimensions
35x77x71mm
- Ambient/storage temperature
0..50°C/-25...70°C
- Rated pollution degree
According to EN 60529 Front panel : IP65
Rear panel : IP20


Input type
  Measurement range Measurement accuracy Input impedance
Min.   Maks.
0  1VDC 0V 1,1V ±0.5% (of full scale) Approx. 11kΩ
0...10VDC 0V 14V ±0.5% (of full scale) Approx. 11kΩ
0...20mADC 0mA 25mA ±0.5% (of full scale) Approx. 5Ω
4  20mADC 0mA 25mA ±0.5% (of full scale) Approx. 5Ω
Type Supply voltage
EI141 -230 230VAC
EI141 -SM 7..24VAC/9..30VDC

Dimensions:
