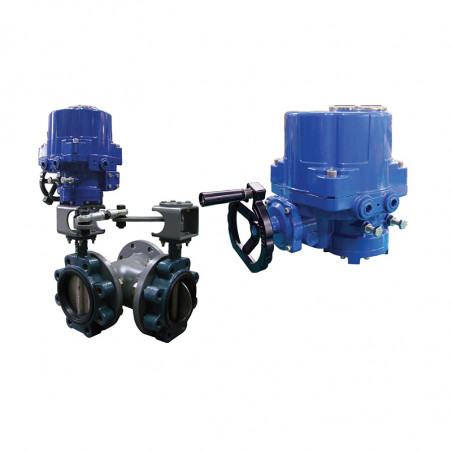

Elektrický cylindo obvod GQ-010 ~ 300
  • Elektrický cylindo obvod GQ-010 ~ 300

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: GINICE KOREA

Elektrický cylindo obvod GQ-010 ~ 300


Features:

  • Durable high grade aluminum alloy housing
  • Hard anodizing for corrosion resistance
  • Various output torque 100 ~ 3000Nm
  • ISO5211 standard mounting base
  • Manual operation with handle-wheel
  • Mechanical stopper bolt to prevent from over travel
  • Various options
  • Self-locking provided by double worm gearing
  • Continuous mechanical position indicator
  • Removable drive bushing for easy machining and mounting


Dane Techniczne

Enclosure Weather-proof type IP67
Power supply 24VAC/DC, 110 or 220VAC/1Ph, 380 or 440VAC/3Ph
Duty cycle On-Off : S2, Max 30Min / Modulating : S4, Max300~1600 start/hour
Motor Induction reversible motor, Class F
Limit switches Open/Close SPDT Limit switch for operation, 250VAC 16A rating
Additional Limit switches Open/Close SPDT Limit switch for dry contact, 250VAC 16A rating
Torque switch Open/Close SPDT Torque switch, 250VAC 16A rating (Excepting GQ-010)
Travel angle 90˚± 5˚ (~270˚available as option)
Manual override Declutching mechanism with handle-wheel
Conduit Entries PF3/4 X 3EA (M25, NPT3/4 as option)
Ambient temperature 20℃ ~ +70℃
Ambient humidity 90% Rh (Non-condensing)
Material Aluminum alloy, Steel, Al bronze, Polycarbonate
Lubrication Grease moly (EP type)
Méně
