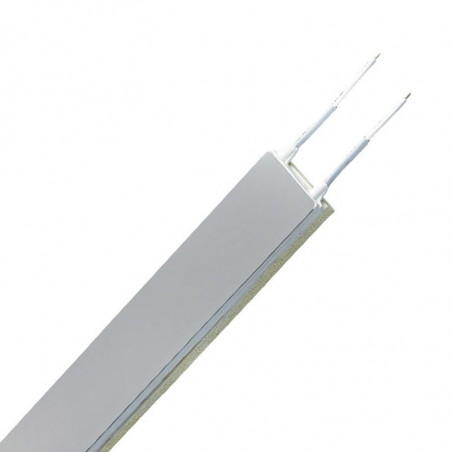

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Flexelec

Pláže

Applications

Heating plates are specially designed for protecting railway switches from freezing. They are fixed by means of stainless steel clips. Several plates can be connected in series (15 maximum). Connections between plates are made by means of tubular connectors and heat-shrink sheaths. To ensure that these heating elements enjoy a long service life, we recommend using a control device.


characteristics
  • Easy to fit.
  • Stands up well to the climatic, physical and chemical conditions encountered in the railway environment.


  PLA/100 PLA/120 PLA/200
Heating wire Nickel-Copper or Nickel-Chrome
Conductor insulation Fluoropolymer + silicon elastomer
Insulation Silicon elastomer
Length 500 mm 450 mm
Width 60 mm 75 mm 110 mm
Thickness 20 mm
Power 100 W 120 W 200 W
Permissible surface temperature from - 60°C to +200°C
Insulation Class II
Protection class IP66
Dielectric strength 2500 V min.
Insulation resistance 100MΩ min.
Weight approx. 1 kg
