Vysokonapěťové kondenzátory - MWS Series
  • Vysokonapěťové kondenzátory - MWS Series

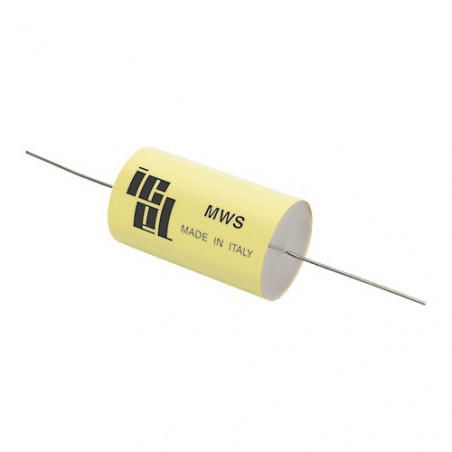

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Icel

Vysokonapěťové kondenzátory - MWS Series

Main Applications

  • High DC voltage applications
  • Voltage multipliers
  • Medical equipments

Execution and Reference Standard

  • Extended metallized film with internal series connection
  • Axial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 60384/2, IEC 60068, RoHS


MWS Ur Cn (μF) du/dt (V/μs) Nom. size D (mm) x L (mm)
2500 Vdc (500 Vac) 0.0047 ÷ 0.56 70 ÷ 200 6.5x27 ÷ 38.5x47
4000 Vdc (750 Vac) 0.0015 ÷ 0.22 175 ÷ 550 6.5x27 ÷ 38.5x44
6300 Vdc (1200 Vac) 0.0015 ÷ 0.068 400 ÷ 800 8.5x38 ÷ 40x47
10000 Vdc (1600 Vac) 0.0015 ÷ 0.018 1200 12.5x60 ÷ 40x60

Product Card - Download
