Výrobce: CAMDENBOSS

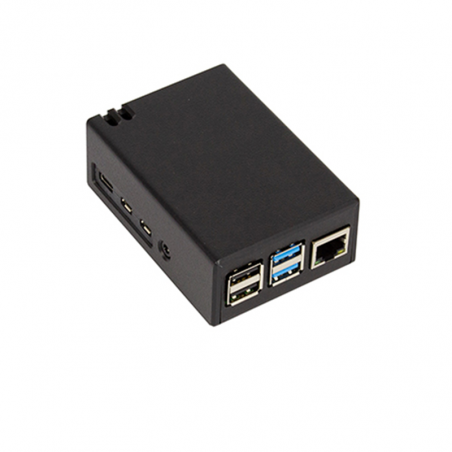

2U Raspberry PI 4B Series Bydlení

A wide selection of solutions for Raspberry Pi tiles. Dedicated enclosures can protect against falling, dusting and destroying electronics hidden inside. Additional ventilation can provide better cooling. Some models have special non-slip feet and are designed to allow access to GPIO pins or other important parts of the board.
  • Manufactured using robust 3mm textured UL94-HB HIPS
  • Pi 4B PCB fi ts into grooves (no screws)
  • GPIO ribbon cable slot on the underside
  • CSI slot for camera cable
  • Rear slots for SD card and LEDs
  • Supplied with push fi t rubber feet
  • Also available in high temperature ABS (subject to MOQ)
  • Transform your Raspberry Pi enclosure into a DIN Rail mountable solution with our CDR-Bracket (not included)





Part no.ColourMaterial typeMaterial temperatureUL ratingMaterial thicknessDimensions
CBRPI4B-2U-NFV-BK Black High impact polystyrene Rated for use up to 70°C HB 3mm L 89.3mm x W 62.4mm x H 34mm
CBRPI4B-2U-NFV-WH White High impact polystyrene Rated for use up to 70°C HB 3mm L 89.3mm x W 62.4mm x H 34mm
CBRPI4B-2U-NFV-DG Dark grey High impact polystyrene Rated for use up to 70°C HB 3mm L 89.3mm x W 62.4mm x H 34mm



Accessories


DIN Rail mount bracket (screws included)

Part no.Description
CDR-Bracket DIN Rail mount bracket
