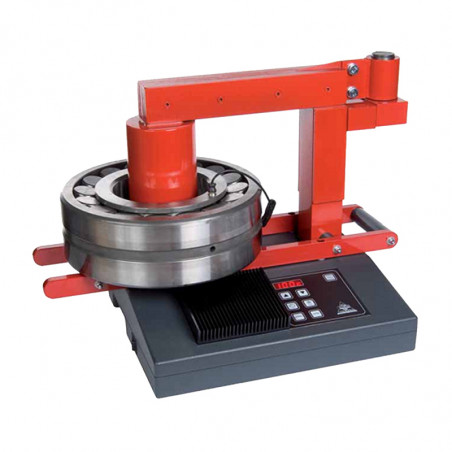

Indukční ohřívač 24 RSD Turbo 3.6KVA

Specifications

Type BETEX

24 RSD TURBO

Facility power 3.6 kVA
Voltage/Amp* 120V15A
230V/16A
Frequenz Hz 50/60Hz
Yokes, standard mm/ set 1 14,30,60
Yokes, standard mm/ set 2 10,14,20,30,60
Swivel arm yes
Max. weight. ± kg - bearings 95
- other parts 50
Min. ID Ø: mm 15/Ø120
Max. OD Ø :mm*A 520
Max. width: mm *B 200
Max. widthd at *C
horizontal heating: mm
230
Cross section poles mm *D 60/Ø115
Pole height mm 230
Temperature control
ºC/ F
- max reach* 240ºC*2
- magnetic probe yes
- digital display yes
Time control - max. reach 0-45 min.
- digital display yes
Sound signal yes
Error report yes
Temperature hold yes
Automatic power reduction yes
Automatic demagnetising,<2A/cm yes
Thermal safety guard yes
Support for horizontal heating yes
Dimensions mm (lxbxh) 440x370x420
Weight heater kg
excl. Yokes
37
Electric crane for yokes -
Alarm signal -
Mobile -



*2On request: 350ºC with heavy duty sensor and extra isolation

Heating times are subject to the relationship between:
• Min. bore and max. outside diameter, width, weight
• Required temperature and material type
• Available power
