Mini průmyslové chladiče, chladiče pro chladicí vodu
  • Mini průmyslové chladiče, chladiče pro chladicí vodu

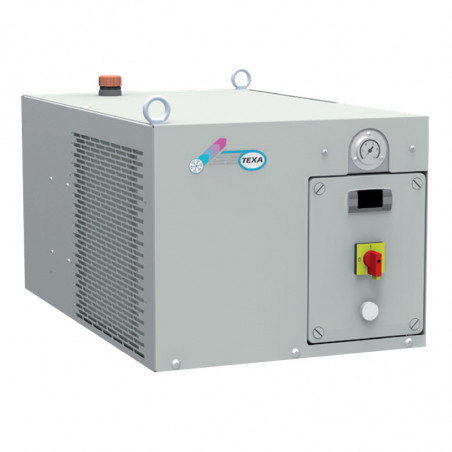

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: TEXA industries

Mini průmyslové chladiče, chladiče pro chladicí vodu

Technical data

Cooling power range 900 - 2550 W
Casing Steel, covered with polyester, colour RAL 7035, casing is removable
Compressor Hermetically closed compressor with thermal protection
Cooling circuit Stub pipe for cooling liquid refill, filter, high pressure switch, cooling liquid R134a
Evaporator Plate heat exchanger with icing protection
Condenser High efficient, spiral exchanger with ribs, protected with steel net
Axial fan Protected thermally and with metal net
Hydraulic circuit Consist of electric pump, plastic water container, valve
Temperature control Is done by the microprocessor controller TX100, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off

Dimensions

Mini chłodnice przemysłowe Chillery do chłodzenia wody SERII TCW wymiary

Type TCW08 TCW12 TCW19
50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60Hz
Nominal cooling power [W] 900 1100 1600 1900 2200 2550
Ambient temperature [°C] +15 - + 45
Water temperature [°C] +8 - + 25
Cooling liquid R134a
Power supply [V / Hz] 230 V / 50 / 60
Power [W] 1175 1275 1675
Pump
Water flow [l/min] 3,0 / 20,0
Water pressure [bar] 3,6 3,2 2,9
Container capacity [l] 10,0
Water terminal [mm] 1/2"
Weight [kg] 46,0 47,0 48,0
