MTR polyesterové kondenzátory
  • MTR polyesterové kondenzátory

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Icel

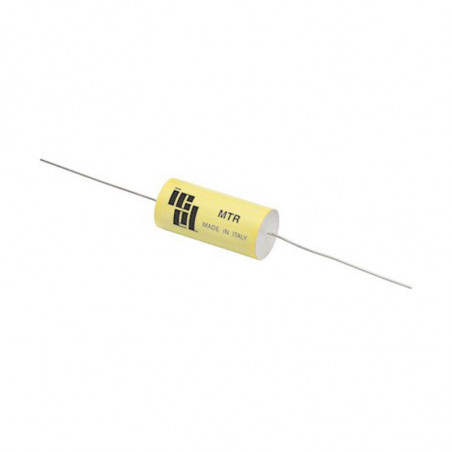

MTR polyesterové kondenzátory

Main Application

  • Blocking, filtering, bypassing, timing, coupling, decoupling, general
  • applications in electronics
  • Low AC voltage motor running
  • Low pulse operation

Execution and Reference Standard

  • Extended metallized film
  • Internal series connection for Ur≥1000Vdc.
  • Axial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 60384/2, IEC 60068, RoHS


MTR Ur Cn (μF) du/dt (V/μs) Nom. size D (mm) x L (mm)
63 Vdc (40 Vac) 0.68 ÷ 150 1 ÷ 6 5x13 ÷ 30.5x44
100 Vdc (63 Vac) 0.68 ÷ 120 1 ÷ 9 6x13 ÷ 33.5x44
250 Vdc (160 Vac) 0.22 ÷ 47 3.5 ÷ 20 6x13 ÷ 33.5x44
400 Vdc (200 Vac) 0.1 ÷ 22 6 ÷ 30 6x13 ÷ 34.5x44
630 Vdc (220 Vac) 0.022 ÷ 6.8 8 ÷ 40 5.5x13 ÷ 32.5x44
1000 Vdc (400 Vac) 0.01 ÷ 3.3 15 ÷ 80 5.5x13 ÷ 32.5x44

Product Card - Download
