Výrobce: DetasUltra

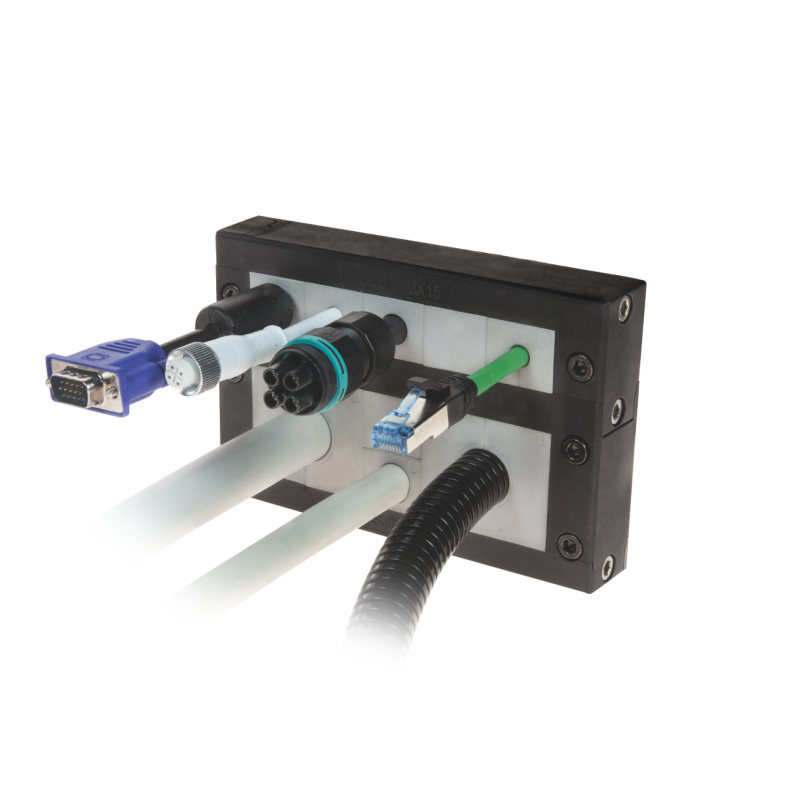

DES 24MX15 - Rámy pro vstup kabelů

  • 1731010215
  • Typ produktu Modulární kabelové průchodky
  • Otvor 146 x 95,4

DES 24MX15 series divisible frames can use 15 small SPP grommets or 2 big SPG and 7 small SPP grommets.

  • Multiple configurations with small and large grommets
  • Frame screws in AISI304 Stainless Steel
  • IP54 protection
  • Strain relief acc. to  EN 62444
  • Robust construction IK10
  • External gasket included
  • Threaded inserts version on request
  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm] Dimensions [mm]
DES 24MX15 1731010215 114 x 70 146 x 95,4
