Výrobce: DetasUltra

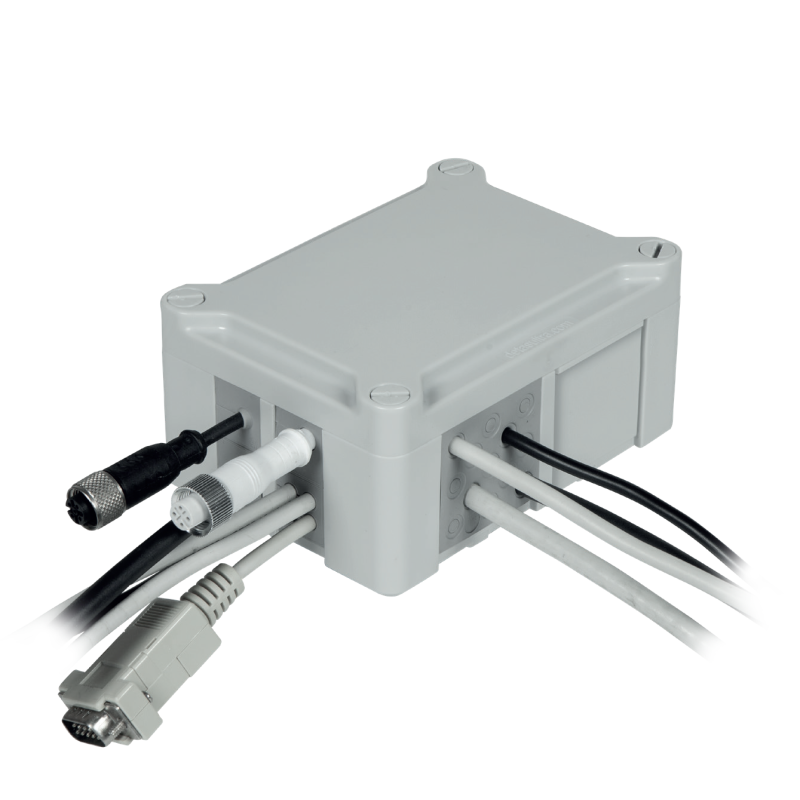

DES DIVIA - Spojovací skříňka

  • 1731613094
  • Typ produktu Spojovací krabice
  • Rozměry 130 x 94 x 62

The new DES DIVIA junction box is designed to simplify and speed up the connection of wiring harnesses, conduits, headed cables and standard cables, in industrial and other environments. It uses removable walls and openable or breakable cable grommets to offer new possibilities compared to traditional cable gland solutions. It uses removable walls and grommets that can be opened or punched, offering new wiring possibilities over traditional cable glands.

  • Removable walls on 4 sides of the box
  • Predisposition for openable and/or punchable grommets
  • IP66 (IP54 with the grommets inserted)
  • Corner and bottom box fixing
  • Anti-fall locking screws included
  • Cable entry also from the bottom part
  • Configurable with the full range of SPC and SPL grommets
  • Material: PC
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C… +130°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Dimensions [mm]
DES DIVIA 130.94A 1731613094 130 x 94 x 62
