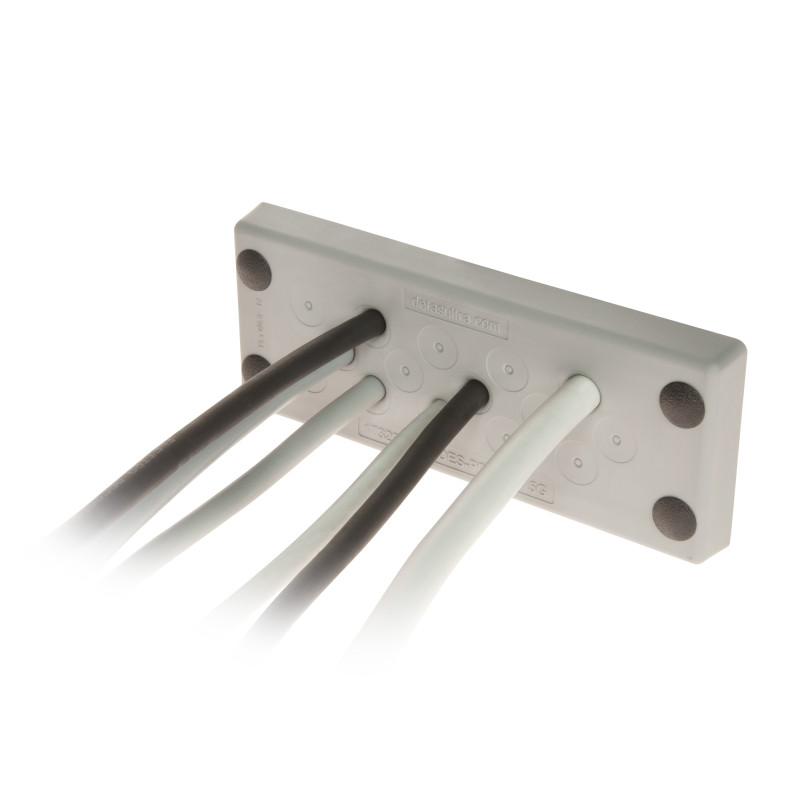

DES PDM 24 FT cable glands are an economical and reliable alternative to standard industrial cable glands.
Model | Code | Dimensions [mm] Cut-out | Dimensions [mm] | No. cables - Ø cables [mm] |
---|---|---|---|---|
DES PDM 24/3G FT | 1732212403 | 112 x 36 | 148,6 x 59,6 | 3 - 18 / 26 |
DES PDM 24/12G FT | 1732212412 | 112 x 36 | 148,6 x 59,6 | 12 - 9 / 16 |
DES PDM 24/14G FT | 1732212414 | 112 x 36 | 148,6 x 59,6 | 10 - 2,8 / 6,5 4 - 14,5 / 22 |
DES PDM 24/15G FT | 1732212415 | 112 x 36 | 148,6 x 59,6 | 15 - 6,8 / 12 |
DES PDM 24/16G FT | 1732212416 | 112 x 36 | 148,6 x 59,6 | 8 - 2,8 / 6,5 4 - 4,4 / 9,7 2 - 8,6 / 16,2 2 - 14,5 / 22 |
DES PDM 24/17G FT | 1732212417 | 112 x 36 | 148,6 x 59,6 | 6 - 2,8 / 6,5 6 - 4,6 / 10,2 5 - 8,6 / 16,2 |
DES PDM 24/25G FT | 1732212425 | 112 x 36 | 148,6 x 59,6 | 12 - 2,8 / 6,5 7 - 4,4 / 9,7 6 - 6,8 / 12 |
DES PDM 24/26G FT | 1732212426 | 112 x 36 | 148,6 x 59,6 | 26 - 4,6 / 10 |
DES PDM 24/32G FT | 1732212432 | 112 x 36 | 148,6 x 59,6 | 21 - 2,8 / 6,5 8 - 4,6 / 10,2 3 - 6,8 / 12 |
DES PDM 24/42G FT | 1732212442 | 112 x 36 | 148,6 x 59,6 | 42 - 2,8 / 6,5 |
DES PDM 24/15B FT | 1732213415 | 112 x 36 | 148,6 x 59,6 | 15 - 6,8 / 12 |
DES PDM 24/124G FT | 1732213421 | 112 x 36 | 148,6 x 59,6 | 120 - 1,75 / 4,7 4 - 2,3 / 6 |
