Výrobce: DetasUltra

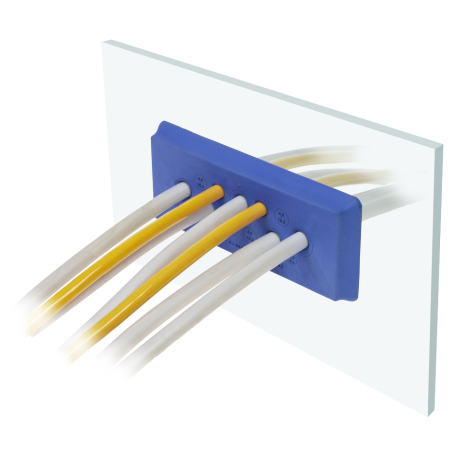

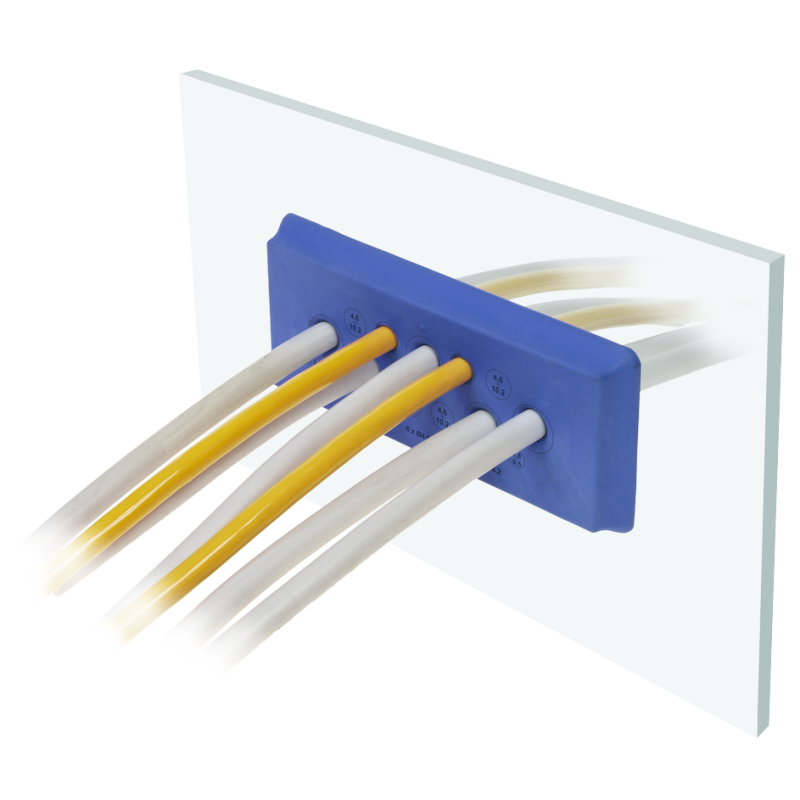

DES PDM 24/25 CLEAN - Dělitelné rámy Hygienic Design

  • 1732025025
  • Typ produktu Hygienické kabelové průchodky
  • Rozměry 155 x 66

DES PDM CLEAN are mainly used in the food and pharmaceutical production industry due to the rounded shape without edges that prevents dirt accumulation and allows easy washing and thanks to the FDA-approved material used.

  • FDA approved material
  • Reinforcing inner frame
  • Rounded edges
  • Fissaggio con aggancio rapido e con inserti filettati M5
  • High strain relief thanks to the double membrane
  • IP66 protection
  • Wall thickness for snap fixing 1.5-2 mm
  • Material: TPE, halogen-free, silicone-free
  • ‍Flammability: UL94-HB
  • ‍Temperature: -40°C... +80°C (static)
Model Code Dimensions [mm] Cut-out Dimensions [mm] No. cables - Ø cables [mm]
DES PDM 24/13 CLEAN 1732025017 112 x 36 155 x 66
2 - 2,8 / 6,5
6 - 4,6 / 10,2
5 - 8,6 / 16,2
DES PDM 24/25 CLEAN 1732025025 112 x 36 155 x 66
12 - 2,8 / 6,5
7 - 4,4 / 9,7
6 - 6,8 / 12
DES PDM 24/32 CLEAN 1732025032 112 x 36 155 x 66
21 - 2,8 / 6,5
8 - 4,6 / 10,2
3 - 6,8 / 12
