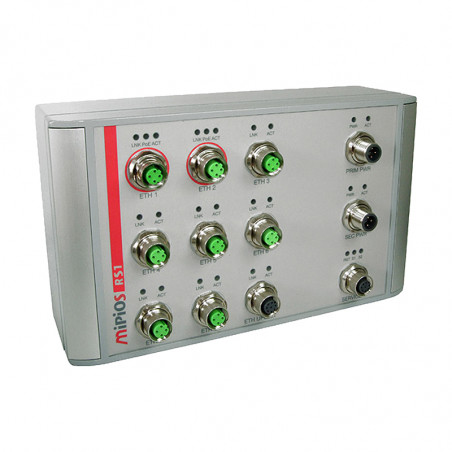

Přepínač RS s konektorem M12 věnovanými železnicích
  • Přepínač RS s konektorem M12 věnovanými železnicích

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Přepínač RS s konektorem M12 věnovanými železnicích

Specifications:
  • Unmanaged 8-port rugged Ethernet switch
  • Rugged aluminum enclosure (220 x 130 x 70 mm)
  • Fanless and maintenance-free
  • 8 Fast Ethernet ports via M12 connectors
  • Power over Ethernet (PoE) PSE (ports 1 and 2)
  • 2x 24 VDC or 110 VDC nom. redundant power supply, service interface via M12 connectors
  • Status LEDs for ports, PoE and switch state
  • -40 to +70(+85)°C operating temperature
  • EN 50155 class Tx (railways) and IP67 compliant
  • ISO 7637-2 compliant (E-mark for automotive)


Standard Configurations:

Article No. Channels Uplink port Management PSU PoE

06RS01-01

8 x 100Base-T 1 Gb uplink managed 24 VDC (S2) 2 x PSE

06RS01-05

8 x 100Base-T 1 Gb uplink managed 110 VDC (S2) 2 x PSE

06RS02-01

8 x 100Base-T 1 Gb uplink managed 24 VDC (S2) 2 x PSE

06RS02-05

8 x 100Base-T 1 Gb uplink unmanaged 110 VDC (S2) 2 x PSE

06RS03-00

8 x 100Base- - managed 24 VDC -

06RS04-00

8 x 100Base- - unmanaged 24 VDC -
