SB08 - Toroidní transformátor zesítění

SB08 – Ring Core Brushing Current Transformer

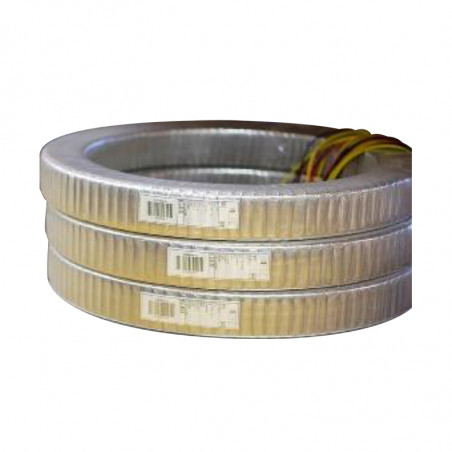

The SB08 bushing type current transformers can be used for variety of measuring, revenue metering and protection tasks. The current transformer SB08 is suitable to put around high-voltage bushings in encapsulated switchgear or in power transformers. The SB08 is meant to be mounted under transformer oil (up to 105°C) or in air, nitrogen or SF6-gas. Current transformer may be equipped with a „flux compensation Winding”. This additional feature prevents the measurement being influenced by external magnetic field causes by –for example- high currents in adjacent phases. The transformer can be ordered independently or as a part of a subassembly. Please check Subassembly brochure for more information.



Rated data:

Application Transformer oil (up to 105°C), air, nitrogen SF6
Standard IEC61869-2, IEEE C57.13,
CAN/CSA-C60044-1-07,
AS60044.1 and others on request
Rated primary current (I1) 30….30000A
Rated secondary current (I2) 1,5A and others on request
Rated burden As required e. g. 2.5, 5, 10, 15, 30VA
Accuracy class As required e. g. 0,2S, 5P20, PX, TPY, C800
Rated short-time thermal current 100 x I1, max. 125kA
Rated insulation level 0,72/3/-kV
Rated frequency As required e. g.
50-60Hz, 16,7Hz
Secondary leads 4 or 6mm², l = 1,5m color coded
Minimal inner diameter ≥ 50mm
Limitations for outer diameter ≤ 1800mm
Maximum height ≤ 750mm
Maximum weight ≤ 600kg

Dimensions

SB08 – Toroidalny przekładnik prądowy przelotowy

SB08 – Toroidalny przekładnik prądowy przelotowy

Wiring diagram

SB08 – Toroidalny przekładnik prądowy przelotowy
