Výrobce: EBG

LXP - 18 Series

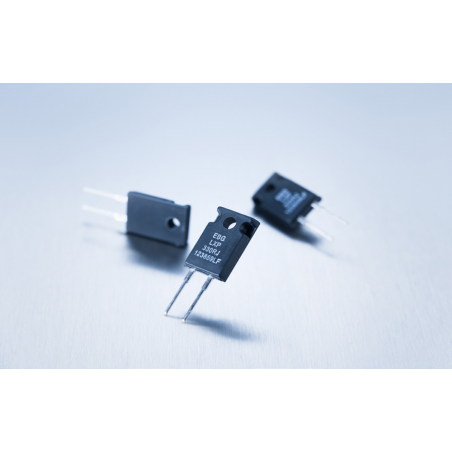

Series LXP-18 TO-220

EBG Resistor offers the completely encapsulated and insulated TO-220 package for low ohmic value and Non-Inductive design for high-frequency and pulse-loading applications. Ideal use for power supplies. The LXP-18 series is rated at 18 W mounted to a heat sink.

Features
  • 18 W operating power
  • TO-220 package configuration
  • Single-screw mounting simplifies attachment to heat sink
  • A fully molded housing for environmental protection
  • Resistor package completely insulated from heat sink
  • Non-Inductive design
  • ROHS compliant
  • Materials in accordance with UL 94 V-0
