SILIGAINE TN - ochranný plášť s proměnlivou průměr monofilu polyester
  • SILIGAINE TN - ochranný plášť s proměnlivou průměr monofilu polyester

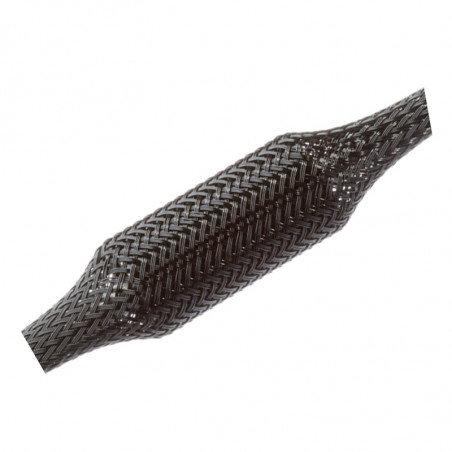

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: OMERIN

SILIGAINE TN - ochranný plášť s proměnlivou průměr monofilu polyester

Characteristics
• Continuous operating temperature: - 50 °C to +150 °C.
• Peaks at +220°C.
• Good resistance to oils and common chemical environments.
• Excellent resistance to humidity and mould.
• Excellent resistance to abrasion.
• Expandable sleeving for easy threading and wide range of overlapping diameters.

Standard products
• Colour: black.

Packaging
• TN 03 to TN 10: 100 m rolls.
• TN 12 to TN 30: 50 m rolls
• TN 40 to TN 50: 25 m rolls.

Standards
• IEC 60684-1 and 60684-2.
• IEC 60684-3 parts 340 to 342.

Applications
• Sheathing of electric cable harnesses
• Protection of assemblies subject to severe mechanical constraints (abrasion, cutting, alternate bendings, doorways, etc.) .

Options
• Sleevings cut to length: contact us.
• Grey braid: SILIGAINE® TG
• Braid in Rilsan® single-filament braid for improved resistance to abrasion (wire of diameter 0.30 mm): SILIGAINE® RN or SILIGAINE® RG.
• Braid resistant to vertical flame (UL 1441-VW-1) in special single-filament polyester: SILIGAINE® TN-FR.


Reference I N T E R N A L D I A M E T E R ** Nominal wall thickness (mm)
Nominal diameter (mm) Minimum diameter (mm) Maximum diameter (mm)

TN03

3 1 6 0,4

TN04

4 2 7 0,4

TN05

5 3 9 0,4

TN06

6 4 11 0,4

TN08

8 5 13 0,4

TN10

10 6 17 0,4

TN 12

12 8 21 0,4

TN15

15 10 24 0,4

TN20

20 13 28 0,4

TN25

25 14 36 0,4

TN30

30 17 43 0,4

TN40

40 25 60 0,4

TN50

50 35 75 0,4
