Teplotní teplotní čidlo teploty s pouzdrem. Typ: TP 4
  • Teplotní teplotní čidlo teploty s pouzdrem. Typ: TP 4

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Teplotní teplotní čidlo teploty s pouzdrem. Typ: TP 4

Thermo-element type:
S, K, J, T
Thermo-electrode wire diameter
0,25  0,5   1  1,5   1,6  2  3  3,2  4,5   5  6  8 mm
Sensor length:
for client request
standard execution:
insulated weld

Application:
Sensor is used in technology processes temperature measurement.

It is possible to connect measurement weld with coat (grounding)

Order method

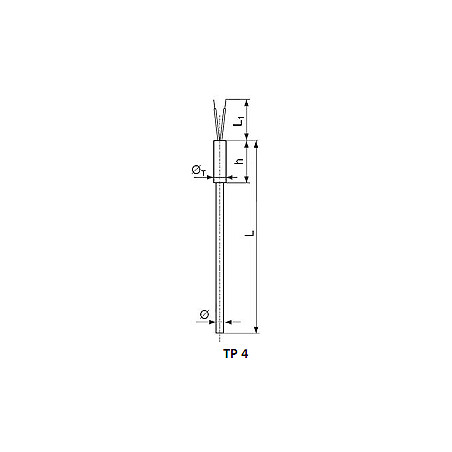

Type Insert type Type Class Length L [mm] Length L1[mm] Coat diameter  0 [mm] Sleeve diameter ØT/h [mm] T Coat material
TP 4 1 - poj.
2 - podw.

K
S
J
T

1
2
........ mm .....mm.

0,25
0,5
1,0
1,5
1,6
2,0
3,0
3,2
4,5
6 8

..../.... mm Metal 1.4301 1.4541 1.4841 Inconel 600
