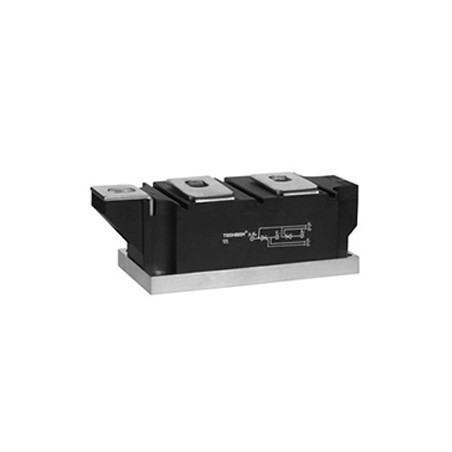

Trystor / Tyristorové moduly
  • Trystor / Tyristorové moduly

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: TECHSEM

Trystor / Tyristorové moduly

Features

  • Isolated mounting base,2500V-
  • Pressure contact technology with increased power cycling capability
  • Air-cooling for up to 350A. for over 400A , air-cooling or water-cooling
  • Simple mounting and easy maintenance

Typical application

  • AC/DC Motor drives
  • Various rectifiers
  • Soft start AC motor control
  • Welding power supply
  • DC supply for PWM inverter
  • Battery DC chargers or dischargers
  • UPS

Electrical data

Type VDRM/VRRM IT(AV)@Tc ITSM I2t dv/dt di/dt IDRM IGT VGT IH VTM@ITM VTO rT Rj-c
IRRM
10 ms 125°C 25°C 125°C
V A °C kA kA2s V/μs A/μs mA mA V mA V A V mΩ °C/W
MTx26 600-1800 26 85 0.65 2.1 800 50 8 100 2.5 120 1.69 80 0.85 9.68 0.950
MTx40 600-1800 40 85 1.15 6.6 800 50 8 100 2.5 120 1.60 120 0.85 5.57 0.650
MTx55 600-1800 55 85 1.50 11.3 800 50 8 100 2.5 120 1.50 170 0.85 3.47 0.530
MTx70 600-1800 70 85 1.70 14.5 800 50 10 100 2.5 120 1.48 210 0.80 2.64 0.410
MTx90 600-1800 90 85 2.25 25 800 100 10 100 2.5 120 1.70 270 0.80 3.01 0.28
MTx110 600-1800 110 85 2.80 39 800 100 12 100 2.5 120 1.69 330 0.80 2.29 0.250
MTx135 600-1800 135 85 3.80 65 800 3.60 10 150 2.5 150 1.75 410 0.80 2.85 0.200
MTx160 600-1800 160 85 6.0 180 800 100 15 150 2.5 150 1.70 480 0.80 1.69 0.170
MTx182 600-1800 182 85 7.0 245 800 100 20 150 2.5 150 1.62 550 0.80 1.26 0.160
MTx200 600-1800 200 85 8.0 320 800 100 25 180 2.5 180 1.65 600 0.80 1.27 0.140
MTx250 600-1800 250 85 9.0 405 800 100 25 180 2.5 180 1.57 750 0.80 0.85 0.120
MTx285 600-1800 285 85 9.1 414 800 100 25 180 3.0 180 1.45 750 0.80 0.53 0.12
MTx500 600-1800 500 85 14.5 1051 800 100 35 200 3.0 200 1.44 1500 0.80 0.34 0.065
MTx570 600-1800 570 85 15 1125 800 100 35 200 3.0 200 1.45 1600 0.80 0.20 0.065
