UGEF - Overwhead Sn napětí transformátor

UGEF - Outdoor Medium Voltage Transformer

The cast resin outdoor voltage transformer is capable to withstanding the aggravate outdoor environmental condition. The voltage transformer is maintenance-free and only mountable in vertical situation. The secondary windings are used for measurement or protection purpose..



Technical Specifications

Design Cast-resin insulated
Colour gray
Class of insulation B
Rated frequency As required.
For example50, 60Hz
Class of insulation complying with the standard
Secondary voltage 100V/√3; 110V/√3; 100V/3; 110V/3 other voltage on request
Burden / Class 5-150VA/0,2-1; 3P; 6P
Secondary terminal box With degree of protection IP54 max. IP65
Ambient temperature -40….+45°C
In accordance to VDE0414; IEC60044; ANSI C 57.13; GOST
Base fixing
Special model Secondary switch- over


Ordering specifiacations

Type

UGEF 12D33

UGEF24D33

UGEF36E43
Insulation voltage 12/28/75kV 24/50/125kV 36/70/170kV
Max. number of winding 3 3 3
Thermal breakeven performance 600VA 600VA 600VA
Creepage distance 610 610 610
Weight 27kg 27kg 45kg

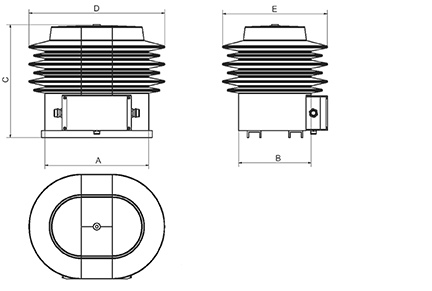

Dimensions

UGEF - Napowietrzny przekładnik napięciowy SN wymiary



  A B C D E Secondary
terminals		 Numer of shield

UGEF 12D33

 300 210 325 392 302 10 3

UGEF 24D33

 300 210 415 392 302 10 5

UGEF 36E43

 350 248 490 422 240 10 7
