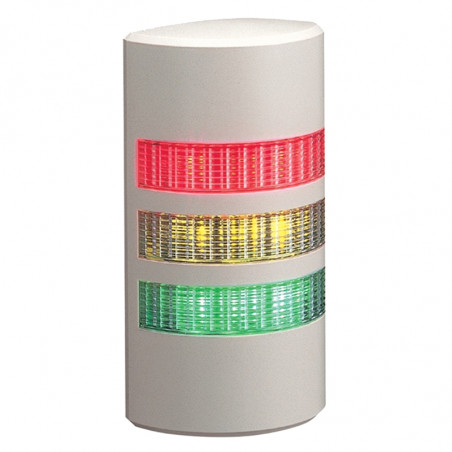

Montáž WEP / EC na nových generačních signálních lampách
  • Montáž WEP / EC na nových generačních signálních lampách

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Patlite

Montáž WEP / EC na nových generačních signálních lampách

Technical data

· Clear Vertical Cut Lens: For enhanced illumination over a wide perspective.
· FB type: Built-in audible alarm with 90dB at 1m.
· Installation: Vertical and horizontal.
· Body Color: Chrome plated or ivory white.
· Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission.
· NPN/PNP Compatible: Direct connection to PLC (24V DC ONLY)
· Lighting Pattern: Flashing and Continuous.
· Dust-proof and waterproof IP65 (except for FB type: IP54).
· Available Colors: Red, Amber, Green, Blue, Clear/White.



SIZE - 37.5mm profile
INPUT VOLTAGES - 24V AC/DC
FUNCTIONS - Continuous Only
- Continuous, Alarms
MOUNTING - Wall Mount
BODY STYLE - Pre-assembled, pre-wired
BODY COLOR - Body: Beige
TIERS - Available from 3 to 5 tier versions
MODULE COLORS - Red
- Amber
- Green
- Blue
- Clear
BUZZER - Alarm 1: selectable, single-tone, intermittent (fast beep) alarm, 85dB (at 1m)
- Alarm 2: selectable, single-tone, intermittent (slow beep) alarm, 85dB (at 1m)
CONFORMITY STANDARDS - UL Listed (E215660)
PROTECTION RATINGS - IP-23





Dimensions [mm]
Catalogue number
1 - Profile colour:
   WE: chromium plated
   WEP: beige
1 - Module quantity:
   3...5
2 - Supply voltage:
   02: 24V AC/DC
3 - Signalisation:
   nothing: constant light
   FB: constant light or blinking with sound signal
4 - Colour:
   R - Red
   Y - Yellow
   G - Green
   B - Blue
   C - Transparent
