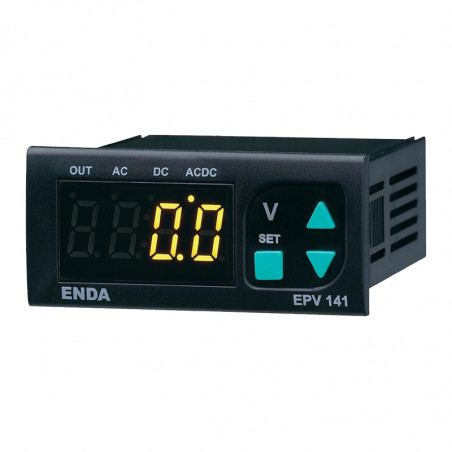

Voltmetry Panel série EPV

* 77 x 35mm sized.
* 3 digits display.
* Values between -100V and 100 V can be indicated with one
decimal number.
* Easy to use by front panel keypad.
* Multifunctional alarm output (NO+NC) for upper and lower
limits.
* CE marked according to Europan Norms.

Supply	230V AC +10%-20% 50/60HZ or 24AC ±10% 50/60Hz; 9..30VDC/7..24AC ±10%
Power consumption	Max 5VA
Scale	AC i RMS DC	0..500V -500..500V
Sensitivity	0,1V (for input values between -100V and 100V)	1V (for input values that lower than -100V and higher than 100V )
Accuracy ±	± 1%
Input Range	500V...500V (Device damages 1250V peak and more voltage.)
Input Impedance	870kΩ
Frequency Range	DC, 10..200Hz
Alarm	Relay: 250V AC, 8A (for resistive load), NO+NC
Housing type	Suitable for flush-panel mounting. (According to DIN 43 700)
Dimensions	35x77x71mm
Ambient/storage temperature	0..50°C/-25..70°C
Rated pollution degree	According to EN 60529 Front panel : IP65 , Rear panel : IP20

Supply voltage	Output	Type
230V AC	- Relay	EPV141-230 EPV141-R-230
9-30VDC / 7-24VAC	- Relay	EPV141-SM EPV141-R-SM
