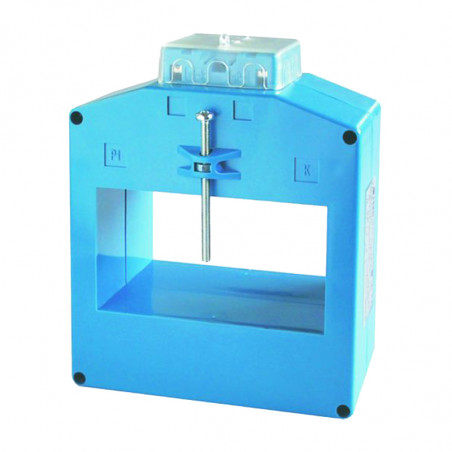

TRAT101 Proudový transformátor na kolejnici 102x55mm
TRAT101 Proudový transformátor na kolejnici 102x55mm

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: FRER

TRAT101 Proudový transformátor na kolejnici 102x55mm

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 80 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <25W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE
Integrated secondary terminals 6mm2


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
400/5 A 3 5

TAT101400X05
500/5 A 5 8

TAT101500X05
600/5 A 8 12

TAT101600X05
800/5 A 10 18

TAT101800X05
1000/5 A 15 25

TAT1011K0X05
1200/5 A 20 30

TAT1011K2X05
1500/5 A 30 40

TAT1011K5X05
2000/5 A 30 40

TAT1012K0X05
2500/5 A 35 40

TAT1012K5X05
3000/5 A 35 40

TAT1013K0X05
4000/5 A 35 40

TAT1014K0X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
400/1 A 3 5

TAT101400X01
500/1 A 5 8

TAT101500X01
600/1 A 8 12

TAT101600X01
800/1 A 10 18

TAT101800X01
1000/1 A 15 25

TAT1011K0X01
1200/1 A 20 30

TAT1011K2X01
1500/1 A 30 40

TAT1011K5X01
2000/1 A 30 40

TAT1012K0X01
2500/1 A 35 40

TAT1012K5X01
3000/1 A 35 40

TAT1013K0X01
4000/1 A 35 40

TAT1014K0X01



Secondary 5 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
400/5A 2 TAT101400J05 4 TAT101400Y05 2 TAT101400S05
500/5A 2 TAT101500J05 4 TAT101500Y05 2 TAT101500S05
600/5A 3 TAT101600J05 3 TAT101600Y05 3 TAT101600S05
800/5A 4 TAT101800J05 4 TAT101800Y05 4 TAT101800S05
1000/5A 8 TAT1011K0J05 8 TAT1011K0Y05 5 TAT1011K0S05
1200/5A 10 TAT1011K2J05 10 TAT1011K2Y05 5 TAT1011K2S05
1500/5A 12 TAT1011K5J05 12 TAT1011K5Y05 5 TAT1011K5S05
2000/5A 15 TAT1012K0J05 15 TAT1012K0Y05 8 TAT1012K0S05
2500/5A 20 TAT1012K5J05 20 TAT1012K5Y05 8 TAT1012K5S05
3000/5A 20 TAT1013K0J05 20 TAT1013K0Y05 12 TAT1013K0S05
4000/5A 20 TAT1014K0J05 20 TAT1014K0Y05 16 TAT1014K0S05



Secondary 1 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
400/5A 2 TAT101400J01 4 TAT101400Y01 2 TAT101400S01
500/5A 2 TAT101500J01 4 TAT101500Y01 2 TAT101500S01
600/5A 3 TAT101600J01 3 TAT101600Y01 3 TAT101600S01
800/5A 4 TAT101800J01 4 TAT101800Y01 4 TAT101800S01
1000/5A 8 TAT1011K0J01 8 TAT1011K0Y01 5 TAT1011K0S01
1200/5A 10 TAT1011K2J01 10 TAT1011K2Y01 5 TAT1011K2S01
1500/5A 12 TAT1011K5J01 12 TAT1011K5Y01 5 TAT1011K5S01
2000/5A 15 TAT1012K0J01 15 TAT1012K0Y01 8 TAT1012K0S01
2500/5A 20 TAT1012K5J01 20 TAT1012K5Y01 8 TAT1012K5S01
3000/5A 20 TAT1013K0J01 20 TAT1013K0Y01 12 TAT1013K0S01
4000/5A 20 TAT1014K0J01 20 TAT1014K0Y01 16 TAT1014K0S01



Secondary 5 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10 VA Cl. 5P15
500/5A 3 TAT101500K05 2 TAT101500L05 - -
600/5A 8 TAT101600K05 4 TAT101600L05 - -
800/5A 12 TAT101800K05 6 TAT101800L05 2 TAT101800M05
1000/5A 15 TAT1011K0K05 7 TAT1011K0L05 3 TAT1011K0M05
1200/5A 15 TAT1011K2K05 8 TAT1011K2L05 4 TAT1011K2M05
1500/5A 15 TAT1011K5K05 8 TAT1011K5L05 4 TAT1011K5M05
2000/5A 20 TAT1012K0K05 10 TAT1012K0L05 4 TAT1012K0M05
2500/5A 25 TAT1012K5K05 12 TAT1012K5L05 6 TAT1012K5M05
3000/5A 30 TAT1013K0K05 15 TAT1013K0L05 7 TAT1013K0M05
4000/5A 30 TAT1014K0K05 15 TAT1014K0L05 7 TAT1014K0M05



Secondary 1 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10 VA Cl. 5P15
500/5A 3 TAT101500K01 2 TAT101500L01 - -
600/5A 8 TAT101600K01 4 TAT101600L01 - -
800/5A 12 TAT101800K01 6 TAT101800L01 2 TAT101800M01
1000/5A 15 TAT1011K0K01 7 TAT1011K0L01 3 TAT1011K0M01
1200/5A 15 TAT1011K2K01 8 TAT1011K2L01 4 TAT1011K2M01
1500/5A 15 TAT1011K5K01 8 TAT1011K5L01 4 TAT1011K5M01
2000/5A 20 TAT1012K0K01 10 TAT1012K0L01 4 TAT1012K0M01
2500/5A 25 TAT1012K5K01 12 TAT1012K5L01 6 TAT1012K5M01
3000/5A 30 TAT1013K0K01 15 TAT1013K0L01 7 TAT1013K0M01
4000/5A 30 TAT1014K0K01 15 TAT1014K0L01 7 TAT1014K0M01


Dimensions

Przekładnik prądowy TAT101 na szynę 102x55mm wymiary
