Vícekanálové relé zemního spojení – X52UX6 (typ A, F a B)

X52UX6 is a multichannel Earth Leakage Relay of Type B and A, F.

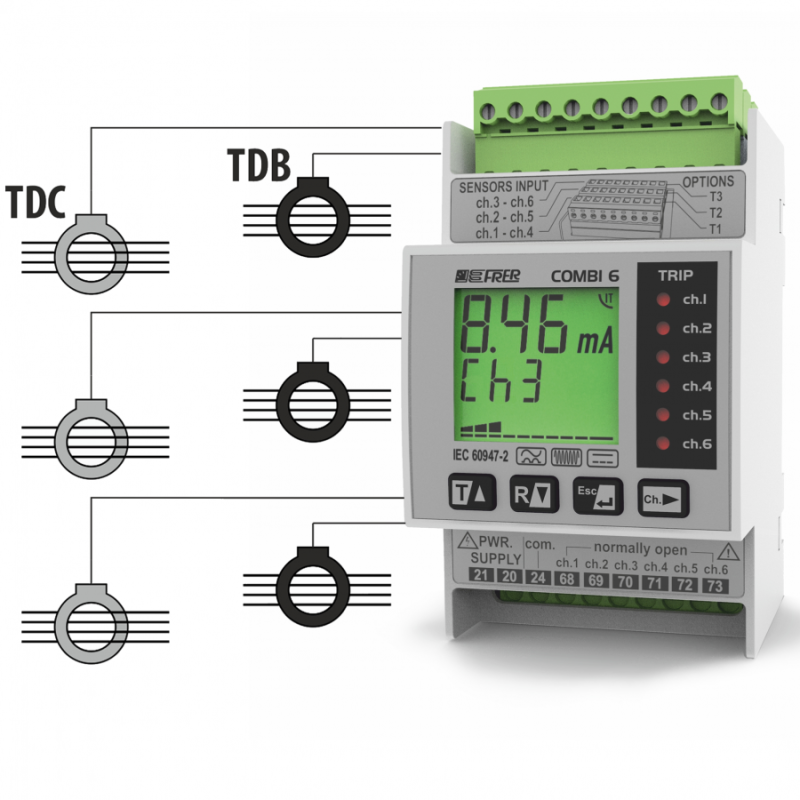

The Multichannel earth leakage relays COMBI 6 have been designed for the monitoring and protection of up to 6 independent systems. A single instrument of 3 DIN modules size allows a considerable optimization of the overall dimensions and of the wiring connection procedures.



Main functions

  • Monitoring and protection of up to 6 independent residual current circuits in a single device.
  • Availability of both Type B and A,F channels simultaneously.
  • Compact 3-module DIN housing allowing space-saving in distribution boards.
  • Programming via 4 front buttons, with copy/paste function for settings between channels.
  • Wide range of trip current and delay settings – divided into 3 ranges for greater precision.
  • Continuous monitoring of the presence and correctness of the connection with residual current transformers.
  • Selectable reset mode: manual or automatic.
  • Input for remote reset and optional alarm output and RS485 Modbus RTU interface.
  • Optional real-time clock (RTC).



Technical data

Parameter Value
Channels amount 6 independent measurement inputs
Type of supported inputs A, F
Activation current range IΔn 30 mA – 30 A (3 ranges)
Activation delay Δt 0,02 s – 30 s (3 ranges, independent or selective)
Current measure TRMS – TrueRMS
Reset Manual / Automatic / Remote (RESET Input)
Operation from the device level 4 functional buttons on front
Relay outputs (optional) Alarm + Reset Input (R61), RS485 Modbus RTU (M60)
Auxiliary supply – version H 80–260 VAC/DC (<7 VA / 3,5 W)
Auxiliary supply – version L 20–60 VAC/DC (<9 VA / 4,5 W)
Operating temperature 0… + 50 °C
Storage temperature –30… + 70 °C
Case Thermoplastic self extinguishing material UL 94-V0
Protection degree IP20 (terminals), IP30 (housing)
Mount DIN 35 mm rail
Insulation and safety According to EN 60947-2,EN 62423, IEC 61010-1



X52U series ordering codes:

X52U_ _ _ _ _ _ _ _ _ _ _
Input Type Type B 6 Inputs TYPE B X52U B6 4DC
Type A-F 6 Inputs TYPE A-F X52U L6 030
MIXED 1 Input TYPE B 5 Inputs TYPE A-F X52U X6 C15
2 Inputs TYPE B 4 Inputs TYPE A-F X52U X6 C24
3 Inputs TYPE B 3 Inputs TYPE A-F X52U X6 C33
4 Inputs TYPE B 3 Inputs TYPE A-F X52U X6 C42
5 Inputs TYPE B 1 Inputs TYPE A-F X52U X6 C51
Options None X60
Alarm + Reset Input R61
RS485 Modbus RTU M60
Supply voltage 80÷260V AC/DC H
20÷60V AC/DC L
Real Time Clock No
Yes C
