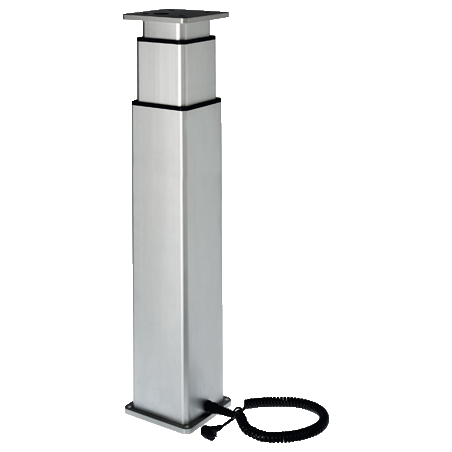

COLUMNS ALPHA COLONNE

COLUMNS ALPHA COLONNE

MAIN FEATURES

  • Two sizes available: "Medium" and "Large"
  • Equally good in push and pull operations
  • The column has an internal lock that can withstand even the maximum load
  • No looseness even after many years of work
  • Internal (inside column) or external drivers

ADDITIONAL POSSIBILITIES

  • Use of a manual drive
  • Other stroke lengths available on request
  • Simultaneous control of up to 32 columns synchronized together
  • Use of internal (inside the column) or external drivers
  • Control of the column with a foot or hand remote control with a simple or advanced range of operation

GENERAL INFORMATION

Type Alpha Colonne Medium / Alpha Colonne Large
Installation position Each position/suspended with drop protection provided by customer
Pushing force To 3000 N
Pulling force To 3000 N
speed 8 mm/s – 18 mm/s
Voltage 24/36 V DC (external driver) - 230 V AC (internal driver)
Level of security IP 30
Self-locking To 3000 N
Ambient temperature -20°C - +60°C
Movement during synchronous operation 2-4 mm
Jump 200 mm – 600 mm
Duty Cycle 20% at nominal load (max. 2 min. on time, 8 min. off time)
Duty Cycle at 10% nominal load (max. 2 min working time, 18 min idle time)
