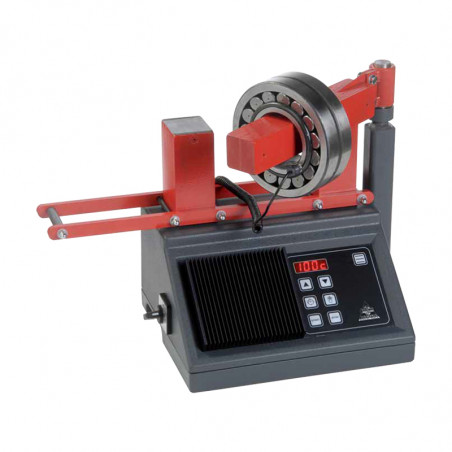

Induction Heaters 22 ESD 3,6kVA
  • Induction Heaters 22 ESD 3,6kVA

Фотографии предназначены только для информационных целей. Посмотреть спецификацию продукта

please use latin characters

Производитель: Bega Special Tools

Индукционный нагреватель 22 ESD 3.6kva

Specifications

Type BETEX

22 ESD
Facility power 3.6 kVA
Voltage/Amp* 120V/15A
230V/16A
Frequenz Hz 50/60Hz
Yokes, standard mm/ set 1 14,30,60
Yokes, standard mm/ set 2 10,14,20,30,60
Swivel arm yes
Max. weight. ± kg - bearings 40
- other parts 25
Min. ID Ø: mm 15/Ø100
Max. OD Ø :mm*A 340/580 *1
Max. width: mm *B 150
Max. widthd at *C
horizontal heating: mm		 125
Cross section poles mm *D 60
Pole height mm 140
Temperature control
ºC/ F		 - max reach* 240ºC
- magnetic probe yes
- digital display yes
Time control - max. reach 0-45 min.
- digital display yes
Sound signal yes
Error report yes
Temperature hold yes
Automatic power reduction -
Automatic demagnetising,<2A/cm yes
Thermal safety guard yes
Support for horizontal heating yes
Dimensions mm (lxbxh) 340x290x380
Weight heater kg
excl. Yokes		 31
Electric crane for yokes -
Alarm signal -
Mobile -



*1With adaptor yokes, only available for the Standard models

Heating times are subject to the relationship between:
• Min. bore and max. outside diameter, width, weight
• Required temperature and material type
• Available power
