M2LPM - преобразователь сигнала с резистивным входом - настраиваемый
M2LPM - преобразователь сигнала с резистивным входом - настраиваемый

Фотографии предназначены только для информационных целей. Посмотреть спецификацию продукта

please use latin characters

Производитель: M-SYSTEM

M2LPM - преобразователь сигнала с резистивным входом - настраиваемый

  • M2LPM

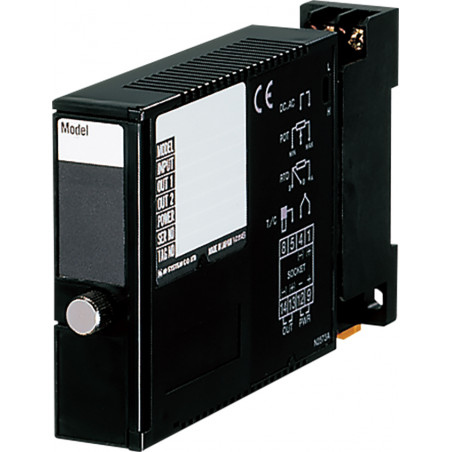

M2LPM is a converter with a resistive input (programmable by the user).


Features

  • Mounting socket for each model - enables easy assembly / disassembly and quick conversion of converters without the need to interference in the cabling
  • Calibration possible by means of a PC or buttons on the front of the housing
  • AC power
  • DIN rail mounting
  • 2000V AC insulation

    • Types of inputs: resistive 50Ω - 10kΩ
    Types of outputs: current or voltage
    Possibility to make a range of inputs / outputs on a special request.

    < / table>
    Меньше
    Читать больше

    Отправить запрос

    Вы заинтересованы в этом продукте? Вам нужна дополнительная информация или индивидуальные расценки?

    Свяжитесь с нами
    СПРОСИТЕ ПРОДУКТ close
    Спасибо за отправку вашего сообщения. Мы ответим как можно скорее.
    СПРОСИТЕ ПРОДУКТ close
    Просматривать
    отправить запрос

    Добавить в список желаний

    Вы должны быть зарегистрированы

    M2LPM is a converter with a resistive input (programmable by the user).


    Features

  • Mounting socket for each model - enables easy assembly / disassembly and quick conversion of converters without the need to interference in the cabling
  • Calibration possible by means of a PC or buttons on the front of the housing
  • AC power
  • DIN rail mounting
  • 2000V AC insulation

    • Types of inputs: resistive 50Ω - 10kΩ
    Types of outputs: current or voltage
    Possibility to make a range of inputs / outputs on a special request.

    Wire connection M3 screw terminals
    Separation Input / Output / Power
    Dielectric Strength DC: 2000V AC
    AC: 1500V AC
    Ranges selection Programmable One Step Cal / PC
    Dual Output None
    Power AC
    Operating Temperature - 5 to + 55 ° C
    Mounting DIN rail
    Dimensions 23x83x124mm
    < / table>
    Меньше
    Читать больше
    Комментарии (0)
    Wire connection M3 screw terminals
    Separation Input / Output / Power
    Dielectric Strength DC: 2000V AC
    AC: 1500V AC
    Ranges selection Programmable One Step Cal / PC
    Dual Output None
    Power AC
    Operating Temperature - 5 to + 55 ° C
    Mounting DIN rail
    Dimensions 23x83x124mm
