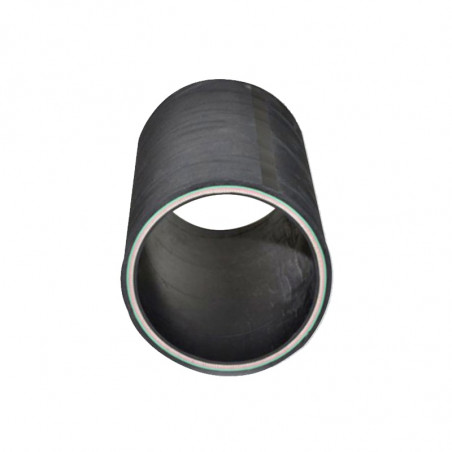

PROTECTOR™ ELECTRIC HOSE ABRASIV
  • PROTECTOR™ ELECTRIC HOSE ABRASIV

Фотографии предназначены только для информационных целей. Посмотреть спецификацию продукта

please use latin characters

Производитель: Lippmann

Протектор змей протектор ™ электрический шланг абразив

PROTECTOR™ ELECTRIC HOSE ABRASIV



Properties
  • non-conductive, R > 10⁹ Ohm
  • water temperature +80 °C short term +110 °C
  • working pressure: 6 bar, burst pressure: 18 bar
  • excellent physical properties, extremely resistant to abrasion
  • stands torsion of up to 90°
  • U-shaped installation between transformer station and support arm
  • long working life
  • cover self-extinguishing and non-combustible
  • preventive maintenance by traffic-light effect
  • lengthwise labelling: Protector™ Abrasiv (note: the run of the labelling shows whether the hose and the sleeving are installed without torsion)
  • REACH-conform
Material
  • Lining: abrasion resistant NR / BR rubber blend
  • Hardness: 55 +/- 5° Shore A
  • Reinforcement: technical fibre
  • Cover: CR, hardly flammable and self-extinguishing, hardness: 55 +/-5 ° Shore A
Areas of Application
  • Cooling water hoses or for water cooled high-current cables
  • Electric-Arc-Furnace (EAF)
  • Ladle Furnace (LF)
  • ESR-Plants
Available Sizes:
DN 100 x 13,0 mm DN 110 x 13,5 mm DN 120 x 13,5 mm DN 133 x 14,0 mm DN 114 x 14,0 mm DN 140 x 14,0 mm DN 125 x 14,0 mm DN 150 x 14,0 mm
DN 159 x 14,0 mm DN 168 x 14,0 mm DN 178 x 14,0 mm DN 190 x 14,0 mm DN 200 x 14,0 mm

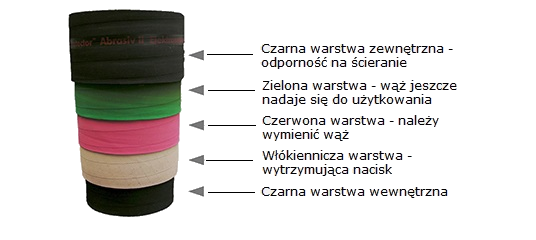

THE TRAFFIC-LIGHT EFFECT
