Произвођач: KIRA Leuchten

Ке-ЛЕД-ЕКС 3010 - ек лампе за монтажу у возилима

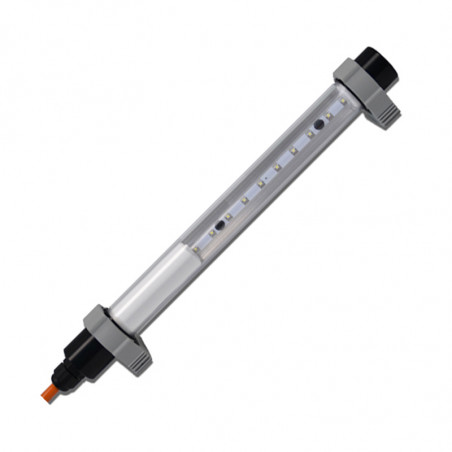

The KE-LED-EX 3010 explosion-proof luminaire has been developed for the fuel industry and the transportation of hazardous substances. Its compact design, tube-shaped body, and easy installation make it perfect for companies engaged in building and equipping tankers or various types of tanks. The lamp not only has an ATEX certificate for zones 1, 2, 21, and 22, but also meets the ADR standard for the transport of hazardous goods.

The thin, compact, and explosion-proof LED ATEX fluorescent lamp has been specifically designed for use in vehicles and mechanical engineering. It is ideal for illuminating equipment used for filling and dosing tankers and silos, or in enclosed spaces, tankers, and machines where constant, modern lighting is required. It also meets safety requirements for explosion protection. The ten integrated POWER LED modules provide high lighting output. Thanks to the included mounting brackets, quick and easy installation is guaranteed.

Main Features

  • Light source: 10 POWER LED modules
  • Construction: polycarbonate (PC) body with a diameter of 30 mm, end elements made of aluminum
  • Mounting: the luminaire is supplied with two mounting brackets
  • Protection rating: IP68
  • Voltage: 230V / 110V / 42V / 24V / 12V
  • ATEX feature: EX II 2 G Ex eb mb op to IIC T4 Gb; EX II 2 D Ex tb op to IIIC T105° Db; ATEX No. TÜV 18 ATEX 8240

Technical Data

Light source 10 POWER LED modules / 6500K
Power 6.5 W
Luminous flux approximately 850 lm
Voltage 24 V
Frequency range 50 - 60 Hz / 0 Hz
Cover made of polycarbonate, Ø30 mm
Diffuser available on request
End caps anodized aluminum
Clamps 2 pieces included
Cable 10 m H07BQ-F 2 x 1.5 mm2
Plug ATEX plug available on request
Protection rating IP68 -50 m / 5 h
Resistance class III
Length 355 mm
Weight 1.55 kg
Operating temperature range -20°C - +50°C
Zones 1, 2, 21, 22
