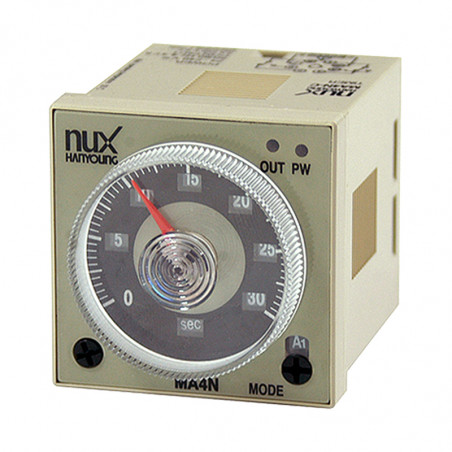

Analog multi timer MA4N company Hanyoung

Suffix code:

Model	Code	Information
MA4N-		Analog multi timer (48 X 48 ㎜)
	A	22c (Time limit) ※ 11 pin type
	B	2c (time limit+ constantaneous) ※11pin type.
	C	2c (time limit), 2c (time limit+ constantaneous) ※ processed by mode selection (8pin type)

Specification

Model		MA4N-A	MA4N-B	MA4N-C
Power Supply voltage		24 - 240 V a.c / d.c 50 - 60 Hz
Voltage regulation		±10 % from supply voltage
Power consumption		5.3 VA (240 V a.c), 2.5 W (240 V d.c)
Resetting time		Max. 0.1 sec
Min Signal length	START	Min. 20 ms		-
	INHIBIT
	RESET
Input condition	START	Non voltage Input		-
	START	Impedance in a short circuit : Max 2 kΩ
	INHIBIT	Residual voltage in a short circuit :: Max. 0.7 V d.c
	RESET	Impedance in open : Min. 100 kΩ
Outpur		Time Limit 2c	Time Limit 1c Instautaneous 1c	Time Limit 2c Time Limit 1c Instautaneous 1c
		N.O : 10 A 125 V a.c, 5 A 250 V a.c, 5 A 30 V d.c
		N.C : 3 A 125 V a.c, 2 A 250 V a.c, 1 A 30 V d.c
Setting error		Max. ± 5 % ± 0.05 sec -
Repeat error		Max. ± 0.3 %
Temperature error		Max. ± 2 %
Insulation resistance		Min. 100 MΩ (Base on 500 V d.c)
Dielectric strength		2000 V a.c 50 / 60 Hz for 1 min.
Vibration	Mechanical Resistance	10 - 55 Hz double amplitude 0.75 mm
Vibration	Malfunction durability	10 - 55 Hz double amplitude 0.5 mm
Shock	Mechanical Resistance	300 m/s² (Approx. 30 G)
Shock	Malfunction durability	100 m/s² (Approx. 10 G)
Life	Mechanical	Over 10 million operations (Open [&] Short frequency : 180 / min)
Life	Electrical	Over 100,000 (250 V a.c 3 A load resistance)
Terminal type		Socket type 11 pin		Socket type 8 pin
Ambient temperature		-10 ~ 55 ℃ (With no condensation)
Conservation temperature		-20 ~ 65 ℃ (With no condensation)
Ambient humidity		35 ~ 85 %R.H.
Weight		About 100g (Including fixing bracket)
