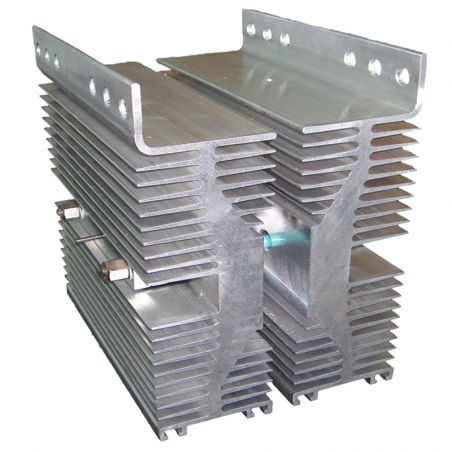

Two element power diode block with radiator RY.
Properties:
• Two element power diode block with both side cooling– RY
• Natural cooling

Typical applications:
• rectifiers,
• power supplies

Options:
• Standard – Diagram. 1
• With current busses
• With blacken radiator
• Thermal protection
• RC circuit
• fuse
• forced cooling
Power block selection:
• There are different semiconductors used, depending on the load. Used semiconductor size is given in the Table 1.
Scheme


Operation conditions:
One element power blocks are used in power electronic systems.
• Ambient air temperature-100 C do +400 C;
• Atmospheric pressure  860hPa - 1060hPa
• Humidity less then 80% @ temperature400 C
• Cooling air without aggressive factors.



Table 1 Power blocks parameters


Module type Mean current IF(AV) [A] Blocking voltage  U RRM
    [V]		 Overcurrent
I FSM
[A]		 Semiconductor size
[mm]		 Block Weight
[kg]
MOC7P 450…650 400…2400 7000…10000 6,9
MOC8P 630…1000 400…8500 10000…24000 6,9
MOC9P 1000…2000 400…7500 20000…42000 16,4
MOC11P 1000…3200 400…6000 27000…65000 18,30
