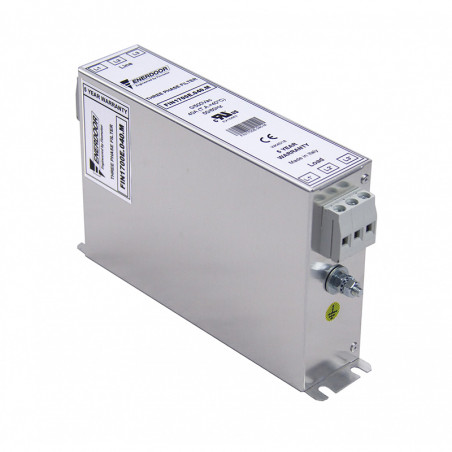

Třífázové filtry série FIN1700E / FIN1700EG

Three phase filter series FIN1700E/ FIN1700EG

Electric characteristics:
Nominal Voltage 0/600V AC - 50/60 Hz
Phase to phase test voltage
Phase to ground test voltage		 2300 VDC (2s)
3100 VDC (2s)
Climatic class -40/+85oC


Technical Specifications

FIN538S1 IN
[A]		 ∑Cx [nF]
±5%		 Cy1[nf]
±5%		 Cy2[nF]
±5%		 L1(mH)
±10%		 L2(mH)
±10%		 Pow Loss
 [W]

.007.M

 7 (6) 20 100 100 1.5 1.5 8

.013.M

 13 (12) 20 100 100 1.5 1.5 12

.018.M

 18 (16) 20 100 100 1.4 1.4 15

.027.M

 27 (25) 20 100 100 1.3 1.3 20

.034.M

 34 (32) 20 100 100 1.2 1.2 32

.040.M

 40 (36) 20 100 100 1.1 1.1 23

.055.M

 55 (50) 20 100 100 1.1 1.1 42

.070.M

 70 (64) 20 100 100 1 1 55

.100.M

 100 (90) 20 100 100 1 1 60

.110.M

 110 (100) 20 100 100 0.9 0.9 90

.130.M

 130 (120) 20 100 0  0 0.8 0.8 90

.150.M

 150 (135) 0  2 100 100 0.7 0.7 103

.200.M

 200 (180) 20 100 100 0.7 0.7 115

.230.M

 230 (210) 20 100 100 0.6 0.7 120

Electric diagram

Filtry trójfazowe seria FIN1700E/ FIN1700EG schemat Filtry trójfazowe seria FIN1700E/ FIN1700EG - schemat

Dimensions

FIN1700EG
FIN1700E

 A B V V1 F H I L N d Weight
[Kg]

.007.M

 140 50 19 15 6 226 200 7 28 M6 1.7

.013.M

 140 50 19 15 6 226 200 7 28 M6 1.7

.018.M

 140 50 19 15 6 226 200 7 28 M6 1.7

.027.M

 140 50 19 15 6 226 200 7 28 M6 1.7

.034.M

 140 50 19 15 6 226 200 7 28 M6 1.7

.040.M

 140 50 19 15 6 226 200 7 28 M6 1.7

.055.M

 177 70 19 25 6 295 265 8 44 M6 3.7

.070.M

 177 70 19 33 6 295 265 8 44 M6 5.2

.100.M

 205 80 28.5 38 8 390 340 12 53 M10 6.5

.110.M

 205 80 28.5 38 8 390 340 12 53 M10 6.5

.130.M

 205 80 28.5 43 8 390 340 12 53 M10 7.1

.150.M

 205 80 28.5 43 8 390 340 12 53 M10 7.1

.200.M

 220 105 28.5 50 8 420 370 12 78 M10 8

.230.M

 220 105 28.5 50 8 420 370 12 78 M10 8

Connection

Rigid Cable
[mm2]		 Flexible Cable
[mm2]		 Torque
[Nm]
0.2 - 10 0.2 - 6 1.2
0.2 - 10 0.2 - 6 1.2
0.2 - 10 0.2 - 6 1.2
0.2 - 10 0.2 - 6 1.2
0.2 - 10 0.2 - 6 1.2
0.2 - 10 0.2 - 6 1.2
0.5 - 16 0.5 - 10 1.8
0.5 - 16 0.5 - 10 1.8
4 - 25 6 - 35 4.5
4 - 25 6 - 35 4.5
10 - 50 10 - 50 4
10 - 50 10 - 50 4
35 - 95 35 - 95 20
35 - 95 35 - 95 20


Typical attenuation

Filtry trójfazowe seria FIN1700E/ FIN1700EG - charakterystyka

Dimensions

Filtry trójfazowe seria FIN1700E/ FIN1700EG obudowa
