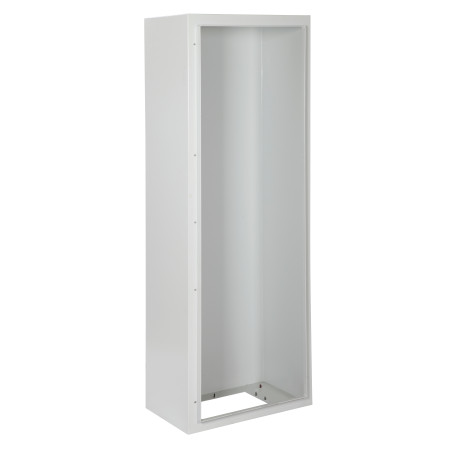

Rama monoblokowa ze ścianą tylną AS1264
Rama monoblokowa ze ścianą tylną AS1264

A fényképek csak tájékoztató jellegűek. Lásd a termék specifikációit

Kérjük, használjon latin karaktereket

Gyártó: QUADRITALIA

Rama monoblokowa ze ścianą tylną AS1264

  • AS1264
  • Anyag

  • Wysokość (mm)
  • Szerokość (mm)
  • Zgodne z CE Tak

AS Series Monoblock Cabinets – Durability and Simplicity in a Compact Design

AS Series monoblock cabinets are robust and versatile solutions for electrical and automation equipment, designed for maximum durability, ease of installation, and aesthetic appeal. Thanks to their welded construction from a single sheet of steel, the cabinets provide excellent rigidity and a high level of IP and IK protection.

Construction and Materials

The cabinet body is made of fully welded 1.5 mm thick steel sheet. The hinged doors, made of 2 mm thick sheet metal, feature a robust lock and seal, ensuring high tightness. The 2.5 mm thick galvanized steel mounting plate provides high load-bearing capacity and corrosion resistance. The bottom of the cabinet features a prepared cable entry hole with flanges.

Painting and Finishing

All components are powder-coated with epoxy-polyester paint in RAL 7035 (textured). The plinths are available in RAL 7024 (glossy graphite gray), creating a cohesive, aesthetically pleasing look.

Protection Ratings and Certifications

  • Protection Rating IP55 according to IEC 62208 and CEI EN 62262
  • Mechanical Resistance IK10 according to IEC 62208 and CEI EN 62262
  • Certifications NEMA Type 1–12: CSA 22.2, Standards 941 and 942, UL 508a

    • Available Variants

    • ASB – Cabinet with Solid Doors and a Panel mounting frame
    • ASV – cabinet with glazed doors, internal solid doors, and mounting plate
    • ASD – cabinet with glazed doors and internal modular frame

    Applications

    The compact yet very durable design of the AS series cabinets allows them to be used in power distribution systems, industrial automation, HVAC installations, control centers, and telecommunications installations – wherever reliability and ease of assembly are important.

    Summary of technical features

    • Panel thickness: 1.5 mm
    • Door thickness: 2.0 mm
    • Mounting plate thickness: 2.5 mm
    • Painting: epoxy-polyester, RAL 7035 (cabinets) / RAL 7024 (bases)
    • Protection rating: IP55 / IK10

    Certificates:
