LFP energia tároló
LFP energia tároló

A fényképek csak tájékoztató jellegűek. Lásd a termék specifikációit

Kérjük, használjon latin karaktereket

Gyártó: DACPOL

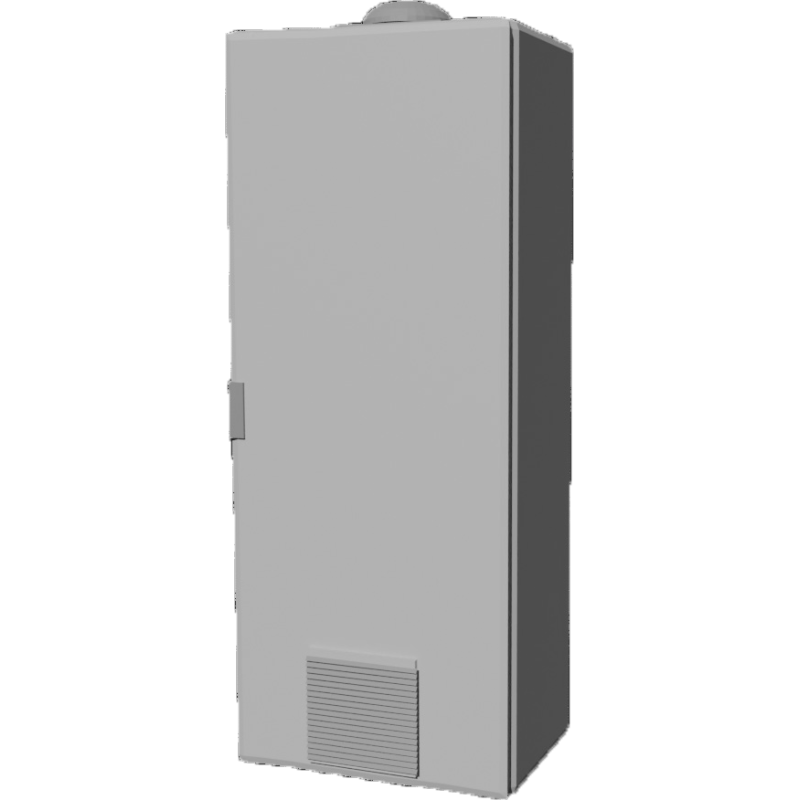

LFP energia tároló

ENERGY STORAGE LFP

Product details: Dacpol’s highly efficient Energy Storage Solutions with popular types of lithium-ion technologies LFP and NMC can meet project requirements of varying scale and is suitable for various environmental conditions, making it an ideal solution for grid ancillary services and C&I applications while ensuring reliability and safety.

Model: IBW193LFP691S

Energy 193.5 kWh
Nominal Capacity 280 Ah
Nominal Voltage 691 V DC
Minimum Cut-off Voltage 583 V DC
Maximum Cut-off Voltage 777 V DC
Discharge Current 140 A
Charge Current 140 A
Transient Discharge Current (15 sec) 400 A
Transient Charge Current (15 sec) 400 A
Protection Class IP 42 Nd
Charging Temperature:
Recommended:		 0°C to +50°C
+10°C to +40°C		 °C
Discharging Temperature:
Recommended:		 -20°C to +50°C
+10°C to +40°C		 °C
Expandability, Scalability YES, slave units can be connected for parallel operation Up to 6x slave to one Master ND
Communication MODBUS/CAN/ETH ND
Power Supply 9-36 V DC
Energy Measurement YES SOC kWh %

energy storage 2.032MWh

Energy 2032 kWh
Nominal Capacity 2520 Ah
Nominal Voltage 806 V DC
Minimum Cut-off Voltage 680 V DC
Maximum Cut-off Voltage 907 V DC
Discharge Current 1260 A
Charge Current 1260 A
Transient Discharge Current (15 sec) 3150 A
Transient Charge Current (15 sec) 3150 A
Protection Class IP 42 Nd
Charging Temperature:
Recommended:		 0°C to +50°C
+10°C to +40°C		 °C
Discharging Temperature:
Recommended:		 -20°C to +50°C
+10°C to +40°C		 °C
Converter ND ND
Communication MODBUS/CAN/ETH ND
Power 24-36 V DC
Energy measurement YES SOC kWh %

energy storage 1.128MWh

Energy 1128 kWh
Nominal Capacity 1400 Ah
Nominal Voltage 806 V DC
Minimum Cut-off Voltage 680 V DC
Maximum Cut-off Voltage 907 V DC
Discharge Current 700 A
Charge Current 700 A
Transient Discharge Current (15 sec) 1750 A
Transient Charge Current (15 sec) 1750 A
Protection Class IP 42 Nd
Charging Temperature:
Recommended:		 0°C to +50°C
+10°C to +40°C		 °C
Discharging Temperature:
Recommended:		 -20°C to +50°C
+10°C to +40°C		 °C
Converter ND ND
Communication MODBUS/CAN/ETH ND
Power 24-36 V DC
Energy measurement YES SOC kWh %
Kevésbé
Olvass tovább

Ajánlatkérés küldése

Érdekel ez a termék? További információra vagy egyedi árajánlatra van szüksége?

Lépjen kapcsolatba velünk
Kérdezzen a termékről close
Köszönjük az üzenetét Amint lehet, válaszolunk
Kérdezzen a termékről close
Böngésszen
Kérelem beküldése

Add to wishlist

Musisz być zalogowany/a

ENERGY STORAGE LFP

Product details: Dacpol’s highly efficient Energy Storage Solutions with popular types of lithium-ion technologies LFP and NMC can meet project requirements of varying scale and is suitable for various environmental conditions, making it an ideal solution for grid ancillary services and C&I applications while ensuring reliability and safety.

Model: IBW193LFP691S

Energy 193.5 kWh
Nominal Capacity 280 Ah
Nominal Voltage 691 V DC
Minimum Cut-off Voltage 583 V DC
Maximum Cut-off Voltage 777 V DC
Discharge Current 140 A
Charge Current 140 A
Transient Discharge Current (15 sec) 400 A
Transient Charge Current (15 sec) 400 A
Protection Class IP 42 Nd
Charging Temperature:
Recommended:		 0°C to +50°C
+10°C to +40°C		 °C
Discharging Temperature:
Recommended:		 -20°C to +50°C
+10°C to +40°C		 °C
Expandability, Scalability YES, slave units can be connected for parallel operation Up to 6x slave to one Master ND
Communication MODBUS/CAN/ETH ND
Power Supply 9-36 V DC
Energy Measurement YES SOC kWh %

energy storage 2.032MWh

Energy 2032 kWh
Nominal Capacity 2520 Ah
Nominal Voltage 806 V DC
Minimum Cut-off Voltage 680 V DC
Maximum Cut-off Voltage 907 V DC
Discharge Current 1260 A
Charge Current 1260 A
Transient Discharge Current (15 sec) 3150 A
Transient Charge Current (15 sec) 3150 A
Protection Class IP 42 Nd
Charging Temperature:
Recommended:		 0°C to +50°C
+10°C to +40°C		 °C
Discharging Temperature:
Recommended:		 -20°C to +50°C
+10°C to +40°C		 °C
Converter ND ND
Communication MODBUS/CAN/ETH ND
Power 24-36 V DC
Energy measurement YES SOC kWh %

energy storage 1.128MWh

Energy 1128 kWh
Nominal Capacity 1400 Ah
Nominal Voltage 806 V DC
Minimum Cut-off Voltage 680 V DC
Maximum Cut-off Voltage 907 V DC
Discharge Current 700 A
Charge Current 700 A
Transient Discharge Current (15 sec) 1750 A
Transient Charge Current (15 sec) 1750 A
Protection Class IP 42 Nd
Charging Temperature:
Recommended:		 0°C to +50°C
+10°C to +40°C		 °C
Discharging Temperature:
Recommended:		 -20°C to +50°C
+10°C to +40°C		 °C
Converter ND ND
Communication MODBUS/CAN/ETH ND
Power 24-36 V DC
Energy measurement YES SOC kWh %
Kevésbé
Olvass tovább
Hozzászólások (0)
