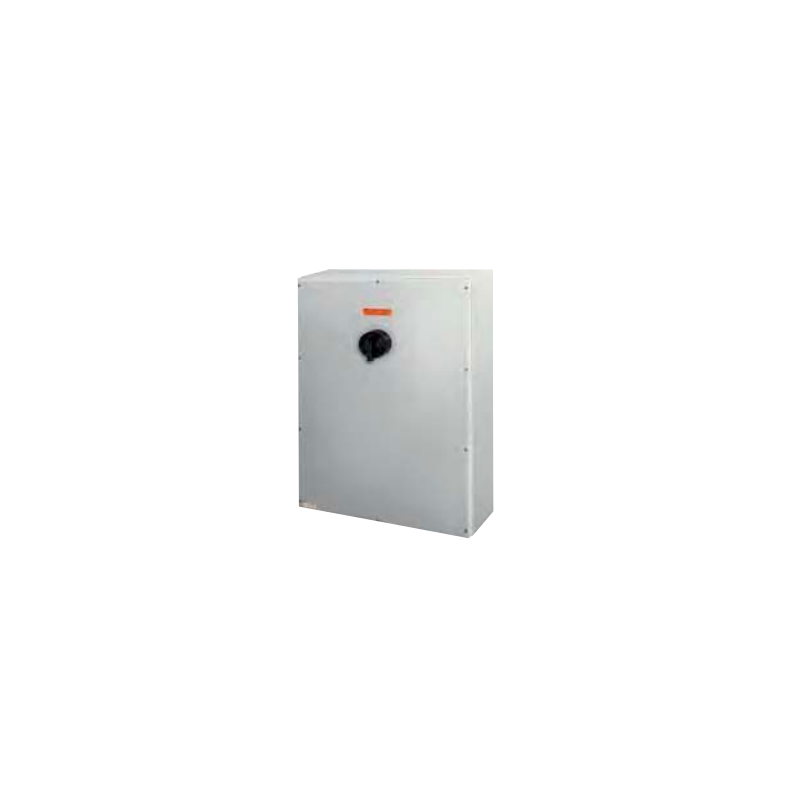

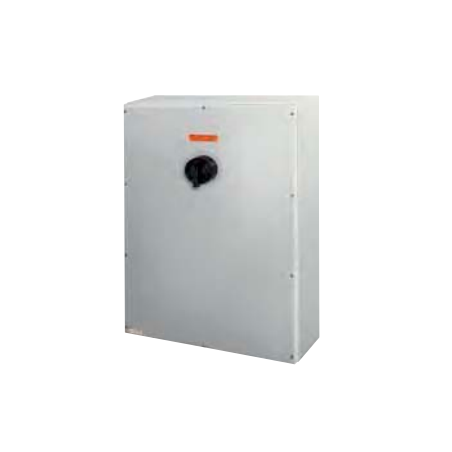

Safety switch for zones 22 (250A) GHG 981 0048 R0269

  • GHG 981 0048 R0269
  • Anyag
  • Prąd znamionowy
  • Méret

General table for all GHG 981:

Type Examination Certificate
Parameter Value
Labelling according to 2014/34/EU II 3 D Ex tc IIIC T80°C Dc
CCH 15 ATEX 1001
Permissible Ambient Temperature -55 °C to +40 °C / +45 °C / +50 °C / +55 °C – see operating instructions
Mechanical Resistance Class (IK) according to EN 50102 IK 09 = 10 J
Rated Voltage up to 690 V
Rated current See ordering information
Frequency 50 – 60 Hz
Isolation switch for service work according to IEC 62262-1 Class 1 (25 A – 80 A)
Protection class I and II
Protection class according to EN 60529 IP66
Auxiliary contact 1 x NO (Normally Open) – with ON, OFF, and ON delay
1 x NC (Normally Closed) – with ON, OFF, and ON delay
Can be locked with a padlock Lockable in the OFF position with 3 commercial padlocks.
Housing Color Plastic = Black / Steel Sheet = RAL 7032 / Stainless Steel 316L = Electropolished

Detailed table for different GHG types:s

Type GHG 981 (25 A) GHG 981 (40 A) GHG 981 (80 A)
Fuse fuse up to 415 V AC: 50A gG
up to 690 V AC: 50A gG 		down 415 V AC: 50A gG
up to 690 V AC: 80A gG 		up to 415 V AC: 100 A gG
up to 690 V AC: 100 A gG
AC-3 switching capacity according to EN 60947-3 Annex A Up to 415V:
25A / 3-pole
23A / 4.6-pole
Up to 690V:
14 A / 3-pole
14 A / 4.6-pole 		Up to 415V:
40 A / 3-pole
40 A / 6-pole
Up to 690V:
22 A / 3-pole
17 A / 6-pole 		Up to 415V:
71 A / 3-pole
55 A / 6-pole
Up to 690V:
23 A / 3-pole
17 A / 6-pole
Connection Terminals 4 mm² – 10 mm² 16 mm² – 35 mm² 50 mm² – 70 mm²
Type GHG 981 (100 A) GHG 981 (160 A) GHG 981 (250 A)
Fuse fuse up to 415 V AC: 315 A gG
up to 690 V AC: 355 A gG 		up to 415 V AC: 315 A gG
up to 690 V AC: 355 A gG 		up to 415 V AC: 315 A gG
up to 690 V AC: 355 A gG
Switching capacity AC-3 according to EN 60947-3 Annex A 100 A 160 A 250 A
Connection terminals 50 mm² – 70 mm² 95 mm² – M8 × 25 185 mm² – M10 × 30
Type GHG 981 (400 A) GHG 981 (630 A) GHG 981 (700 A)
Fuse fuse up to 415V AC: 500A gG
up to 690V AC: 500A gG 		up to 415V AC: 800A gG
up to 690V AC: 800A gG 		up to 415V AC: 800A gG
up to 690V AC: 800A gG
AC-3 switching capacity according to EN 60947-3 Annex A 400A 630 A 700 A
Connection terminals 1 × 240 mm² 2 × 185 mm² – M12 × 40 2 × 240 mm² – M12 × 40
