Gyártó: Artidor

AR-021-DP01 motion sensor

  • AR-021-DP01

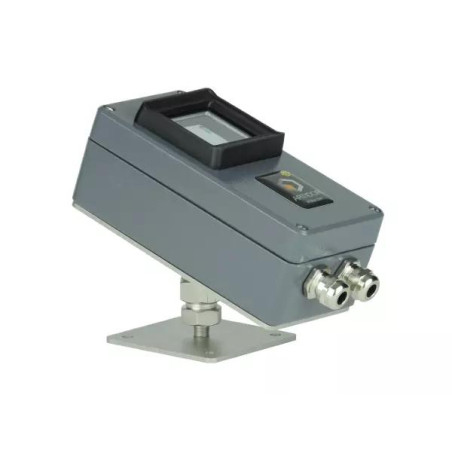

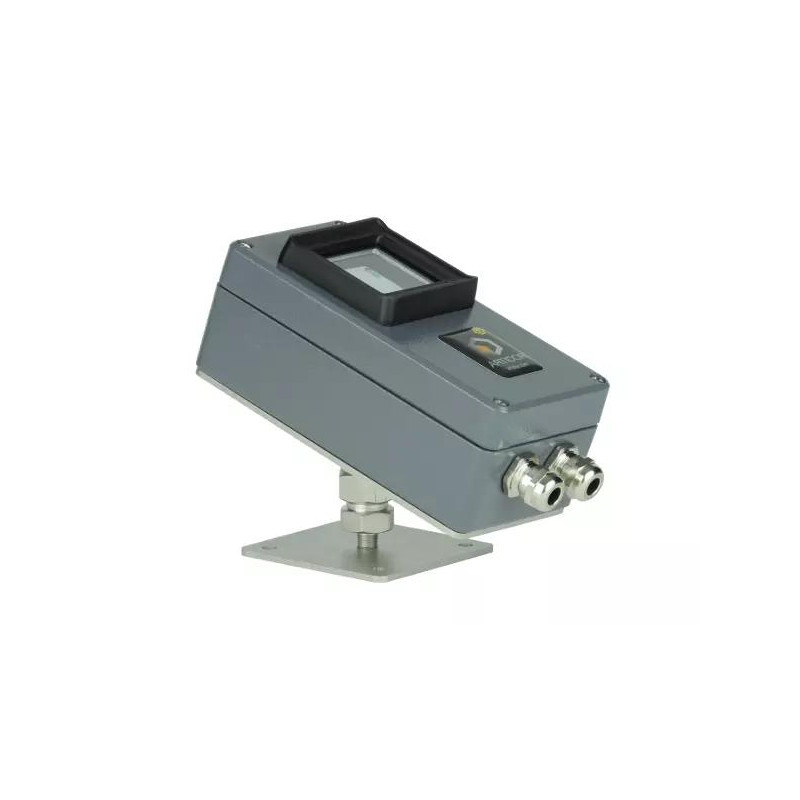

AR-021 — Explosion-proof Motion Sensor (Radar)

Compact sensor for zones 2/22 (gas/dust), based on radar technology. It enables autonomous control of lighting/devices — with adjustable lighting threshold and hold-on time. A durable aluminum housing with a stainless steel handle and an IP66 seal guarantee reliability in harsh industrial environments.

Parameters and Features

  • Ex Marking (ATEX): II 3G Ex nR IIC T6 Gc • II 3D Ex tc IIIC T80°C Dc
  • Detection Technology: High Frequency (HF) Radar
  • Detection Angle: approx. 140°
  • Detection Range (Adjustable): 1–8 m
  • Illumination Threshold (Adjustable): 3–3000 lx
  • Outputs: Main output up to 4000 VA (resistive/slightly inductive load) + potential-free contact
  • Protection rating: IP66
  • Mounting: stainless steel bracket; M20 cable glands (Ø6–14 mm cables)

Technical Data

Zones2 (gas) / 22 (dust)
Power Supply240 V AC, 50 Hz
Sensor TechnologyHF (microwave) radar
Angle / Rangeapprox. 140° / 1–8 m (adjustable)
Light Threshold3–3000 lx (adjustable)
Backup TimeAdjustable (15 s…30 min – depending on configuration)
Control Outputup to 4000 VA + potential-free contact
HousingDie-cast aluminum; Stainless steel bracket
Grouges2 × M20, for cables Ø6–14 mm
Protection ratingIP66
