Gyártó: Artidor

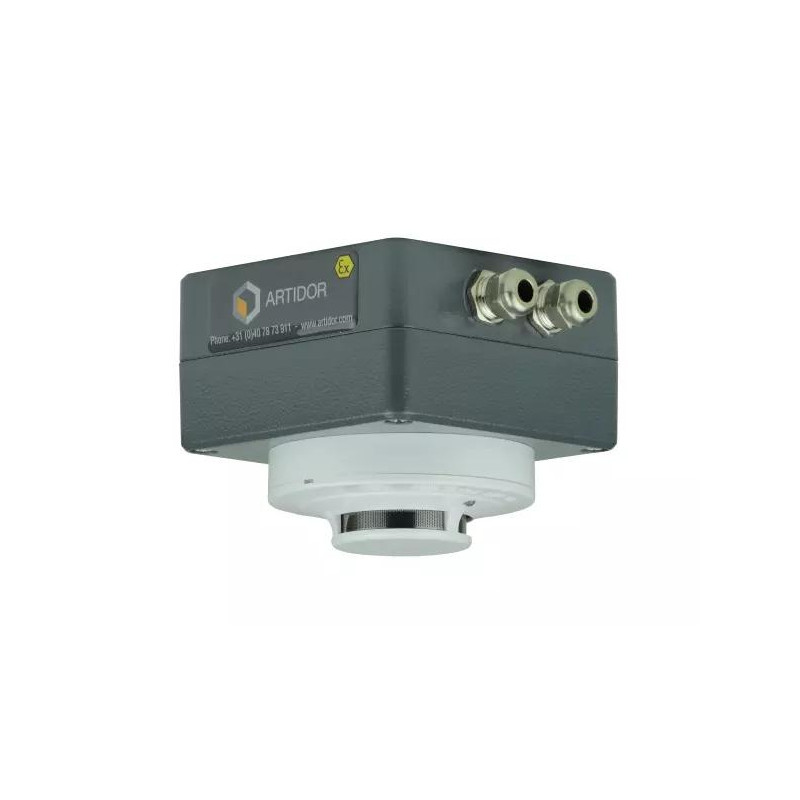

Smoke detector AR-025-DP01

  • AR-025-DP01

AR-025 — Explosion-proof Smoke Detector (Optical)

Compact smoke detector for zones 2 (gas), in a powder-coated aluminum housing (RAL 7015), with sealing to IP65. Optical detection (photodiode), built-in LED indicator (green - operation, red - alarm), NO or NC relay output with the ability to connect sensors in series. Power supply 12 V DC. The sensor complies with EN 54-7 and has an explosion-proof marking II 3 G Ex ec mc IIC T6 Gc.

Parameters and functions

  • Technology: optical detection (photodiode)
  • Output: relay NO or NC, sensors can be connected in series
  • Indication: green LED - flashing in operation mode; red LED - steady light in alarm
  • Power supply: 12 V DC; rated current 35 mA; Power 0.368 W
  • Protection rating: IP65 (EN 60529)
  • Housing: cast aluminum, painted RAL 7015; M16 glands (2 pcs.) for cables Ø 5–9 mm
  • Explosion protection: II 3 G Ex ec mc IIC T6 Gc

Technical data

Ex markingII 3 G Ex ec mc IIC T6 Gc
EU directives2014/34/EU (ATEX 114), 2014/30/EU (EMC)
CE conformity / StandardsEN 60079-0:2018, EN 60079-7:2015/A1:2018, EN 60079-18:2015/A1:2017
SensorPhotodiode (optical)
Power Supply12 V DC
Rated Current35 mA
Power0.368 W
Status IndicationLED: Green flashing - operation; Red steady - alarm
Fire CertificateEN 54-7
Rev. Switching Current (AC1)1A at 30VDC
OutputNO or NC (configurable), can be connected in series
ConnectionsTerminals 4×2.5mm²
Cable Entries2×M16, Cable Diameter 5–9mm
GroundingExternal, stainless steel, 4 mm²
Operating temperature-20°C to +60°C
Housing dimensions (L×W×H)120×120×113 mm (without glands)
Weight1.265 kg
Protection classIP65 according to EN 60529

Order code

Type numberOutput
AR-025/001NO
AR-025/002NC
