Gyártó: Eaton / CEAG

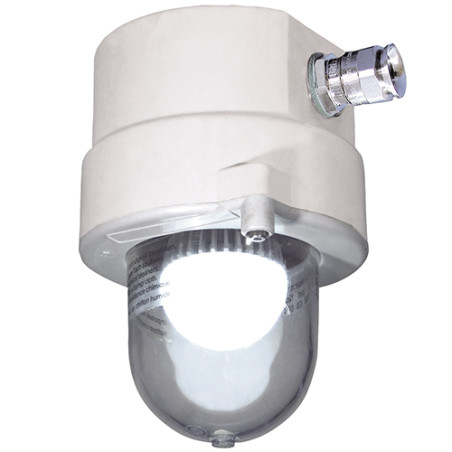

dKLK 23/Ex d GHG 871 1301 R0101

  • GHG 871 1301 R0101
  • Szín niebieski
  • DLAWNICA 1 × dławnica Ex-d M20 × 1,5 do kabla Ø 7 – 12 mm

Ex Signaling and Emergency Signaling Luminaires

dKLK 23 / dKLK 23 LED
Plastic Housing for Zones 1 and 21

Protection and Signaling

These luminaires meet the requirements of the ATEX Directive 2014/34/EU for temperature class T6. They are certified for use in potentially explosive zones 1 and 2, with temperature classes up to T6, as well as in zones 21 and 22 for explosive dust atmospheres. Furthermore, they meet the requirements of EN 60598, Part 2.22 for emergency lighting.

The dKLK 23 Ex luminaires are designed for compact fluorescent lamps with integrated electronics and power ratings of 5–8 W. If a flash module is installed in the luminaire (optional), the device can also be used as a warning light.

The dKLK 23 LED version is equipped with a 6 W LED lamp. It combines innovative LED technology with key advantages:

  • Energy savings
  • Environmental friendliness – mercury-free
  • Long service life
  • Cost savings thanks to long maintenance intervals
  • Ideal for intermittent operation as a warning light

The housing is made of glass-fiber-reinforced polyester and a cover of transparent or colored polycarbonate.
In combination with a colored protective cover, they can be used as signal luminaires. In combination with output terminal blocks, they can be used as emergency lighting luminaires.
The luminaire is connected via an explosion-proof eXLink connector or a flameproof cable gland.

Thanks to the optional V-CG-S monitoring module with coding switch (up to 20 addresses), they can also be individually monitored within the CEAG emergency power supply system (dKLK 23 V-CG-S).

Parameter dKLK 23 dKLK 23 LED dKLK 23 V-CG-S
EC type examination certificate BVS 10 ATEX E 003 BVS 10 ATEX E 003 BVS 10 ATEX E 003
IECEx Certificate of Conformity IECEx BVS 10.0003 IECEx BVS 10.0003 IECEx BVS 10.0003
Marking according to 2014/34/EU II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC T80°C Db IP66		 II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC T80°C Db IP66		 II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC T80°C Db IP66
Marking according to IECEx Ex db IIC T6 Gb
Ex tb IIIC T80°C Db		 Ex db IIC T6 Gb
Ex tb IIIC T80°C Db		 Ex db IIC T6 Gb
Ex tb IIIC T80°C Db
Ambient temperature range -20°C to +45°C (depending on the light source and mounting position) -20°C to +40°C -20°C to +45°C (depending on the light source and mounting position)
Nominal voltage 230 V AC / 230 V DC 230 V AC 230 V AC / 230 V DC
Rated current approx. 30 mA approx. 30 mA approx. 30 mA
Frequency 50–60 Hz (AC) 50–60 Hz (AC) 50–60 Hz (AC)
Power factor cos φ ≥ 0.95 ≥ 0.95 ≥ 0.95
Protection class 1 1
Light source Compact fluorescent lamp with built-in ballast, E27 socket, 5-8 W, manufacturer: Philips MASTER PL Electronic 5W/8W or equivalent; flash module (see accessories) Philips Master LED 6W Compact fluorescent lamp with built-in ballast, E27 socket, 5-8 W, manufacturer: Philips MASTER PL Electronic 5W/8W or equivalent
Luminous flux approx. 400 lm (7/8 W)* approx. 470 lm* approx. 400 lm (7/8 W)*
Lamp base E27 according to IEC 60238 E27 according to IEC 60238
Dimensions (L x W x H) 164.5 x 189 x 128 mm 164.5 x 189 x 128 mm 164.5 x 189 x 128 mm
Connection Terminals eXLink Explosion-Proof Connector, 3-Pole, 2 + PE, Cage Terminal Block for 8–11 mm2 Cables; Ex M20 x 1.5 Cable Gland for Ø 7–12 mm Cables; Ex M20 x 1.5 Cable Gland, Metal Thread; 1 × M20, PE Max. 2.5 mm², Screw Terminal eXLink Explosion-Proof Connector, 3-Pole, 2 + PE, Cage Terminal Block for 8–11 mm2 Cables; Ex M20 x 1.5 Cable Gland for Ø 7–12 mm Cables; Ex M20 x 1.5 Cable Gland, Metal Thread; 1 × M20, PE Max. 2.5 mm², screw terminal eXLink explosion-proof connector, 3-pole, 2 + PE, cage terminal block for 8–11 mm cables; Ex M20 x 1.5 cable gland for Ø 7–12 mm cables; Ex M20 x 1.5 cable gland, metal thread; 1 × M20, PE max. 2.5 mm², screw terminal
Housing Color RAL 1013 RAL 1013 RAL 1013
Housing Material Glass Fiber Reinforced Polyester Glass Fiber Reinforced Polyester Glass Fiber Reinforced Polyester
Weight approx. 1.7 kg approx. 1.7 kg approx. 1.7 kg
Protection rating according to EN 60529 IP66 IP66 IP66
Light shield Polycarbonate Polycarbonate Polycarbonate
