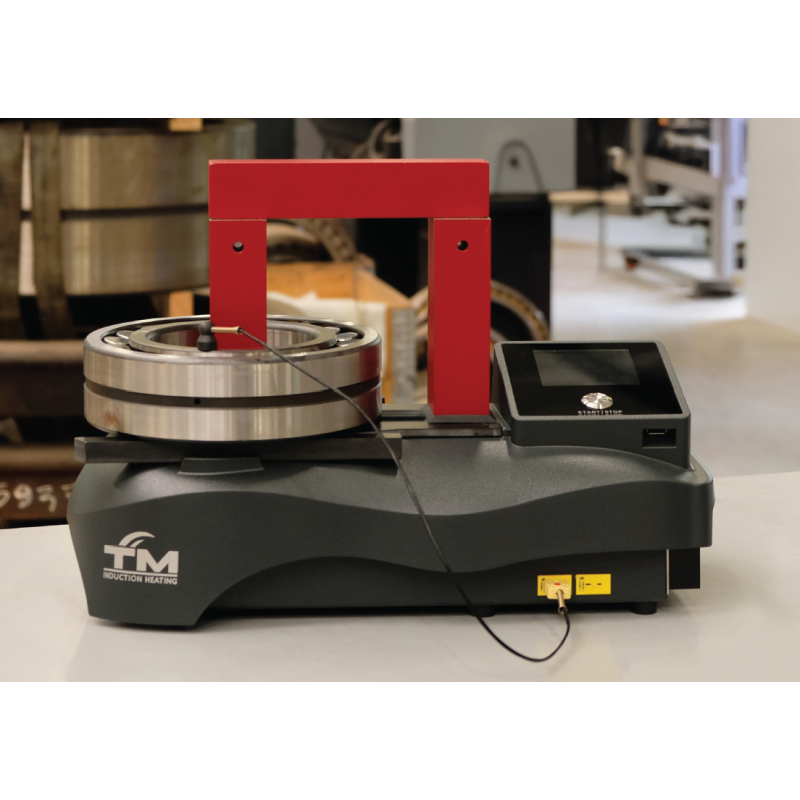

SURETHERM 5X Induction Heater

The SURETHERM 5X is a powerful and intelligent induction heater designed for fast, stress-free heating of bearings, gears, and other precision components. Built to the highest industry standards, the 5X delivers consistent results while protecting the integrity of your parts. The SURETHERM 5X is the entry-level model in the professional SURETHERM series of induction heating units from TM Induction Heating. It is designed to provide high-quality, controlled heating of bearings, gears, and other annular components. Despite its compact size, the 5X meets the same engineering standards as the rest of the SURETHERM series, ensuring reliable, stress-free heating for parts weighing up to 25 kg.

Key features include optional dual-sensor operation and a ramp mode, enabling precise thermal control to protect the metallurgical structure. The unit features an industrial-grade touchscreen interface for easy setup, real-time monitoring, and heat graph display. All data can be exported via USB, and firmware updates are supported throughout the product lifecycle.

Designed for production and maintenance environments, the SURETHERM 5X offers consistent performance with minimal operator effort. It combines the predictability and durability expected from TM Induction Heating systems, making it a practical and efficient choice wherever high performance and repeatability are required in a compact design.

SURETHERM 5X - dimensions (mm)

SURETHERM 5X Technical Specifications

Parameter	Value / Description
Rated Power	2.3 kVA
Voltage	110 – 230 V
Maximum Current	10 A
Frequency	50 – 60 Hz
Max. Workpiece weight	up to 25 kg
Min. hole diameter (vertical)	Ø 15 mm
Min. hole diameter (horizontal)	Ø 66 mm
Max. outer diameter	Ø 300 mm
Max. Element width	140 mm
Device weight	12.5 kg (without yokes)
Temperature (1 sensor)	0–240°C (custom: 0–400°C)
Temperature (2 sensors, optional)	0–240°C, ΔT 20–50°C
Time	0–99 min
Ramp time/temperature	5–99 min / 5–240°C
Temperature (1 sensor)	Set and current temperature, time, power
Heating time	Set and current time
Ramp time/temperature	Set and current temperature, time, and power
Languages	English, German, Spanish, French
Error Report	Displayed on screen
Temperature (2 sensors – optional)	Set and current temperature, time, and power; difference between the inner diameter and external.
Heating graph	Visible on screen
External interface	USB 2.0
Sound signal	Buzzer
Keep warm	Yes
Degaussing	< 2 A/cm
Magnetic Sensor	1 pc. (standard)
Coil Thermal Protection	Yes
Standard Yoke	40×38×200 mm (Ø55 mm hole) 14×14×200 mm (Ø20 mm hole)
Available Yokes (Optional)	10×10×200 mm (Ø15 mm) 25×24×200 mm (Ø35 mm) 30×26×200 mm (Ø40 mm) 40×50×75 mm – adapter set
Warranty	Up to 36 months (24 + 12)
