SURETHERM 30X indukciós fűtőkészülék

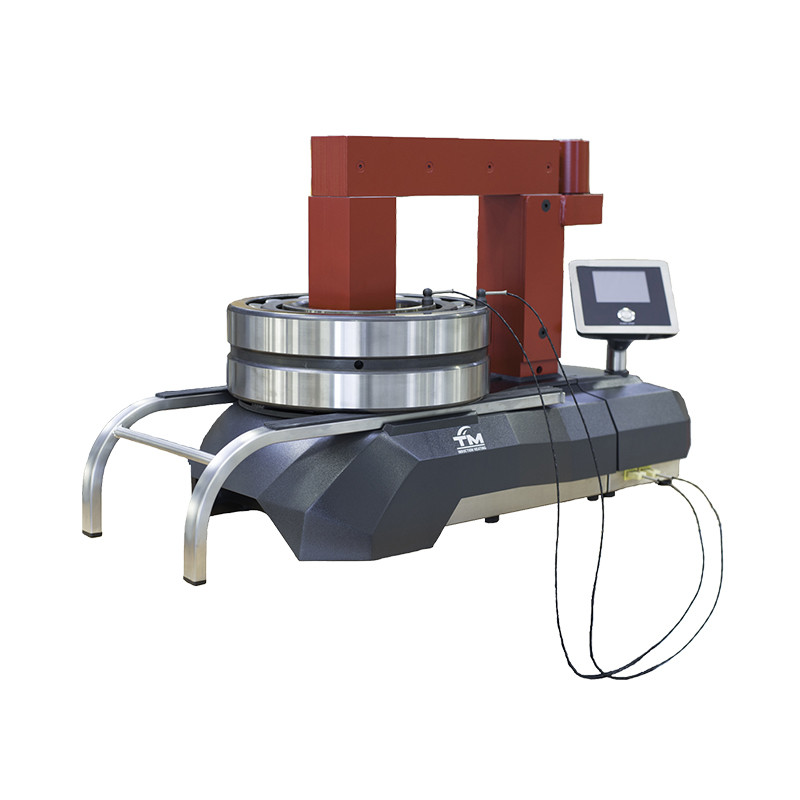

Induction heater SURETHERM 30X

Equipped with our intuitive touchscreen interface, ergonomic pivoting yokes, and two sensor heating, the SURETHERM 30X is the most complete induction heater we’ve ever built.

Designed for use in maintenance shops and production areas, this heating tool can heat parts with a maximum weight of 200 kg, and a diameter of up to 600 mm.



Specifications


Power Rating 8 kVA
Facility Power 400 - 575 V / 20 A / 50/60 Hz
Temperature Control Single / Dual
Weight 85 kg
Operating Area (WxH) 210 x 220 mm
Dimensions (LxBxH) 695 x 330 x 160 mm
Min. bore diameter (workpiece) ø 30 mm
Max. outer diameter (workpiece) ø 600 mm
Max. weight (workpiece) 200 Kg


Ajánlatkérés küldése

Érdekel ez a termék? További információra vagy egyedi árajánlatra van szüksége?

Lépjen kapcsolatba velünk
Kérdezzen a termékről close
Köszönjük az üzenetét Amint lehet, válaszolunk
Kérdezzen a termékről close
Böngésszen

Add to wishlist

Musisz być zalogowany/a

Induction heater SURETHERM 30X

Equipped with our intuitive touchscreen interface, ergonomic pivoting yokes, and two sensor heating, the SURETHERM 30X is the most complete induction heater we’ve ever built.

Designed for use in maintenance shops and production areas, this heating tool can heat parts with a maximum weight of 200 kg, and a diameter of up to 600 mm.



Specifications


Power Rating 8 kVA
Facility Power 400 - 575 V / 20 A / 50/60 Hz
Temperature Control Single / Dual
Weight 85 kg
Operating Area (WxH) 210 x 220 mm
Dimensions (LxBxH) 695 x 330 x 160 mm
Min. bore diameter (workpiece) ø 30 mm
Max. outer diameter (workpiece) ø 600 mm
Max. weight (workpiece) 200 Kg
