SURETHERM PRO 6X indukciós fűtőberendezés

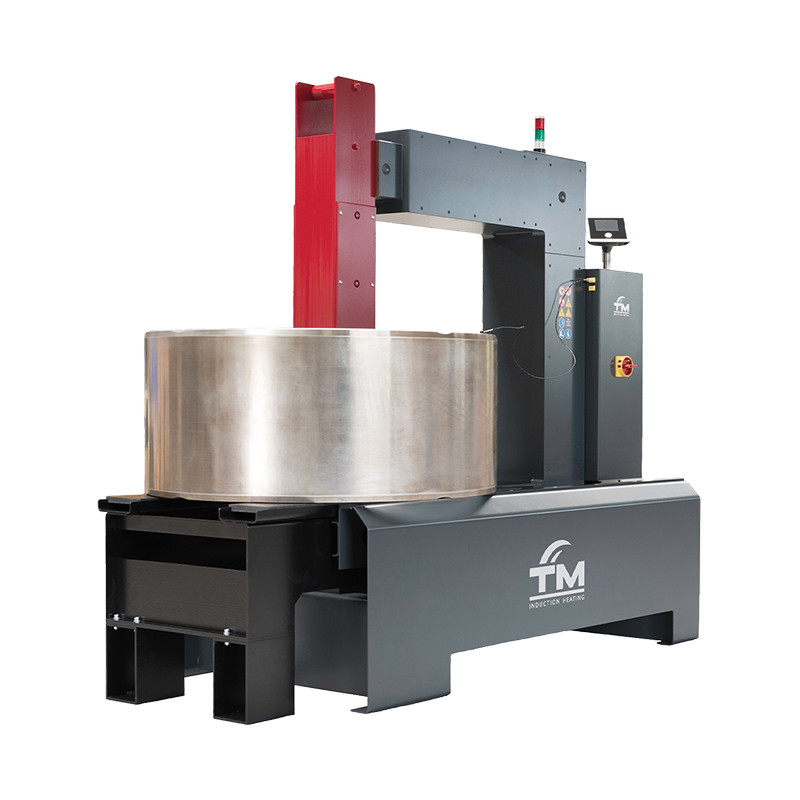

Induction heater SURETHERM PRO 6X

With our new generation of low frequency equipment, we offer the most efficient heaters for a wide range of applications.

Our SURETHERM and EASYTHERM series assure a safe heating process, where only the workpiece is heated. The heaters are suitable for sealed and shielded bearings, pre-greased bearings, bearings with polyamide cages, gearwheels, pulleys, couplings, and bushings.



Specifications


Power Rating 40 kVA
Facility Power 400 - 480 - 575 V / 100 A / 50/60 Hz
Temperature Control Single / Dual
Weight 650 kg
Operating Area (WxH) 690 x 700 mm
Dimensions (LxBxH) 1500 x 800 x 1600 mm
Min. bore diameter (workpiece) ø 85 mm
Max. outer diameter (workpiece) ø 2000 mm
Max. weight (workpiece) 1600 Kg
