Glow Lamps

Application

  • sales halls
  • exhibition lighting
  • accent lighting
  • workstation lighting

PRODUCT FEATURES

  • fixtures up to 180 cm in length
  • low profile height
  • various suspension options
  • aluminum construction
  • high color rendering index (CRI >80)
  • lifespan up to 50,000 hours
  • option to use motion and light intensity sensors
  • external power supply
  • powering multiple fixtures from a single point

Product parameters

Product family SG
Built-in power supply NO
External power supply YES, Mean Well or Tridonic
Sealing IP20
Impact resistance IK03
Rated voltage 38-44VDC
Electrical insulation class III
Efficiency 100 lm/W*
Color temperature 3000K – 6500K
Light color warm white – neutral – cool white
Color rendering index (CRI) >80
Brightness control (option) 1-10, DALI, ready2mains
Lifespan 50,000 h
Warranty 3-5 years
Maximum weight 2 kg
Length from 30 cm to 180 cm
Material aluminum and polycarbonate
Profile color silver
Mounting method surface-mounted or suspended
Beam Light Parameters*
LED TYPE POWER [W]
6 12 18 24 30 36
C CRI 80 698 lm 1395 lm 2093 lm 2790 lm 3488 lm 4185 lm
CRI 90 540 lm 1080 lm 1620 lm 2160 lm 2700 lm 3240 lm
*The luminous flux tolerance is +/- 10%.

Photometry

Beam angle: 120º

Available Variants

Series Length LED CRI Color Temperature Diffuser Power
W

Standard variants use LED type C, CRI 80, color temperature 4000K or 5000K.

Example GLOW fixture configuration:

GLOW-09-C-850-O-18

Beam SG 90 cm, LED type C, CRI 80, color temperature 5000K, oval diffuser, 18W power.

Power Supply Options

The power supply is selected according to customer requirements.

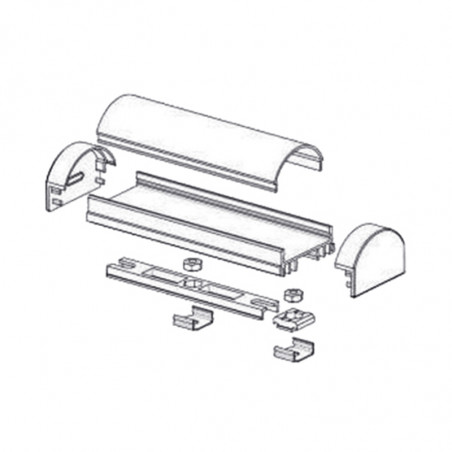

Technical Drawing
