Gyártó: DetasUltra

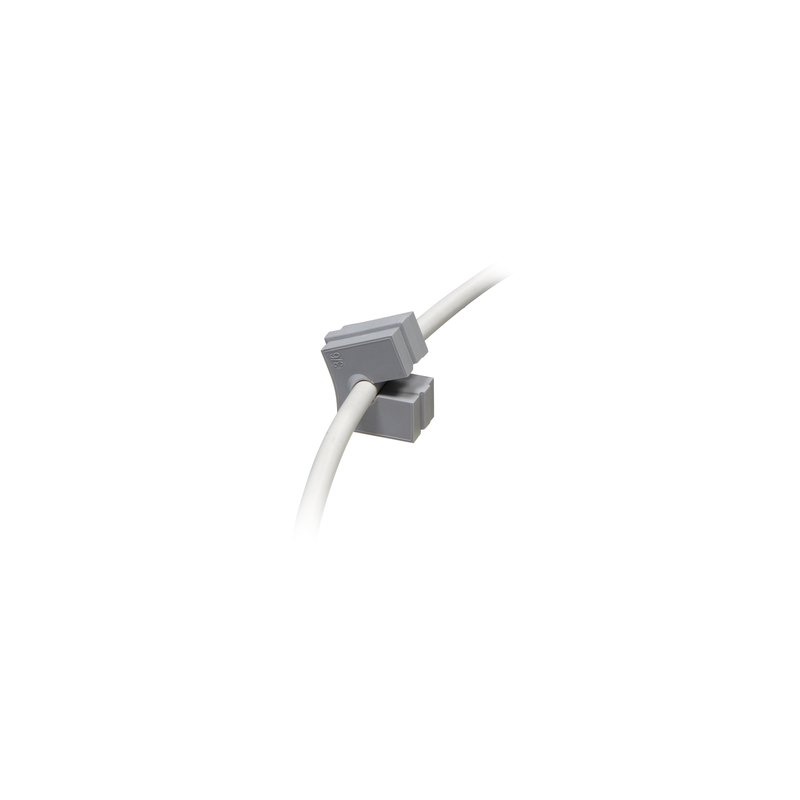

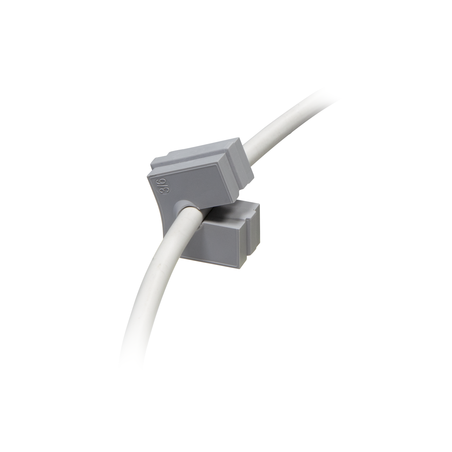

SPC R3B - Hüvelygyűrűk

  • 1731053108
  • Terméktípus Moduły uszczelniające
  • 9 ~ 12

The SPC R family's multi-range openable grommets allow the use of cables with or without connectors.

  • Multi range grommets for cables with connector diameters from 3 to 12 mm
  • IP54 protection
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Cable Ø max. [mm]
SPC R1G 1731053101 3 ~ 6
SPC R2G 1731053102 6 ~ 9
SPC R3G 1731053103 9 ~ 12
SPC R1B 1731053106 3 ~ 6
SPC R2B 1731053107 6 ~ 9
SPC R3B 1731053108 9 ~ 12
