SPG 2R1B - Moduły uszczelniające
SPG 2R1B - Moduły uszczelniające
SPG 2R1B - Moduły uszczelniające

A fényképek csak tájékoztató jellegűek. Lásd a termék specifikációit

Kérjük, használjon latin karaktereket

Gyártó: DetasUltra

SPG 2R1B - Hüvelygyűrűk

  • 1731022240
  • Terméktípus Tömítő modulok
  • 18 - 20

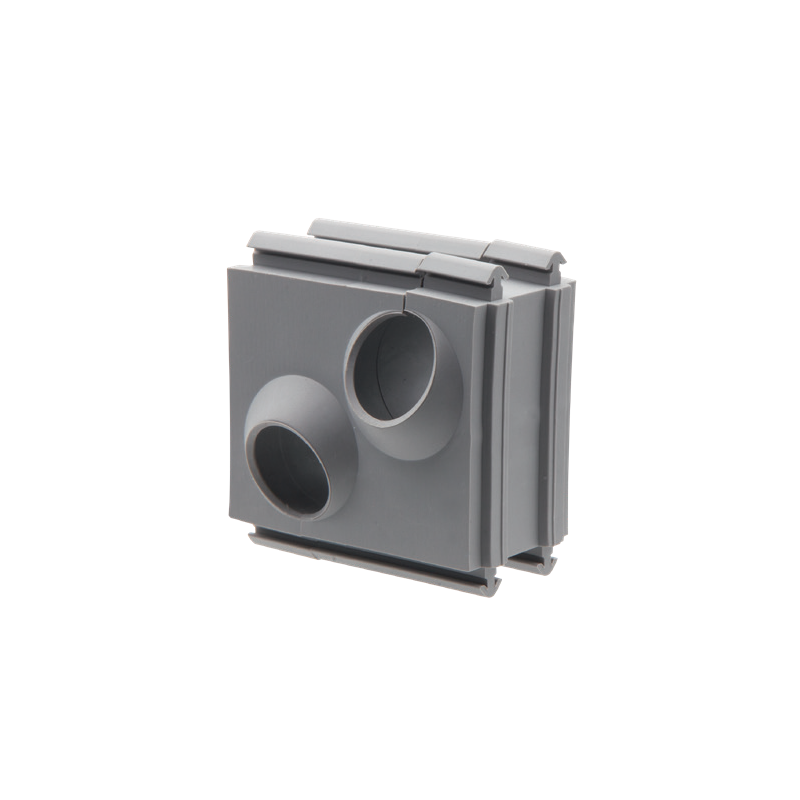

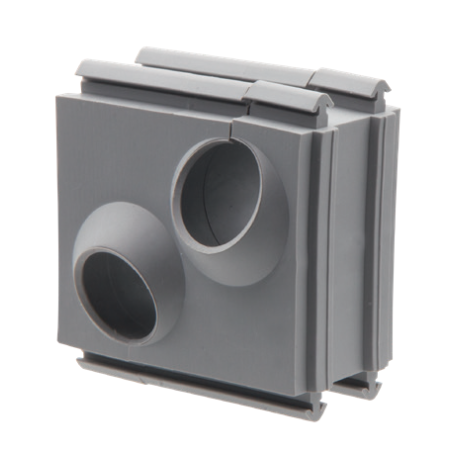

The openable grommets with extended range of the SPG 2R series allow the insertion of cables with or without connectors. They are available for diameters from 18 to 20 mm.

  • Grommets with extended range for headed cables with diameters from 18 to 20 mm
  • IP66 protection
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE, halogen- and silicone-free
  • Flammability: self-extinguishing according to UL94-V0 (gray or black)
  • Temperature: -40°C...+110°C (static)
Model Code Cable Ø max. [mm]
SPG 2R1G 1731022140 18 - 20
SPG 2R1B 1731022240 18 - 20

Ajánlatkérés küldése

Érdekel ez a termék? További információra vagy egyedi árajánlatra van szüksége?

Lépjen kapcsolatba velünk
Kérdezzen a termékről close
Köszönjük az üzenetét Amint lehet, válaszolunk
Kérdezzen a termékről close
Böngésszen

Add to wishlist

Musisz być zalogowany/a

  • Terméktípus Tömítő modulok
  • 18 - 20

The openable grommets with extended range of the SPG 2R series allow the insertion of cables with or without connectors. They are available for diameters from 18 to 20 mm.

  • Grommets with extended range for headed cables with diameters from 18 to 20 mm
  • IP66 protection
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE, halogen- and silicone-free
  • Flammability: self-extinguishing according to UL94-V0 (gray or black)
  • Temperature: -40°C...+110°C (static)
Model Code Cable Ø max. [mm]
SPG 2R1G 1731022140 18 - 20
SPG 2R1B 1731022240 18 - 20
