Gyártó: DetasUltra

SPG K3G - Hüvelygyűrűk

  • 1731022330
  • Terméktípus Moduły uszczelniające
  • 26 ~ 30

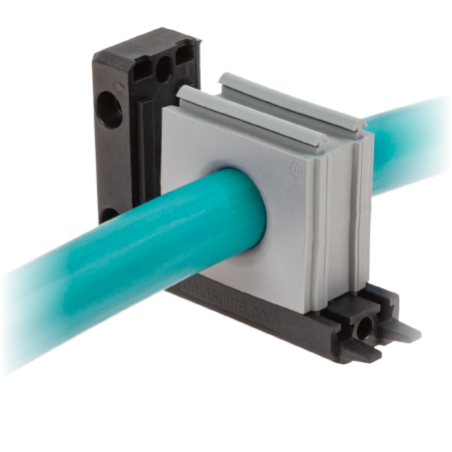

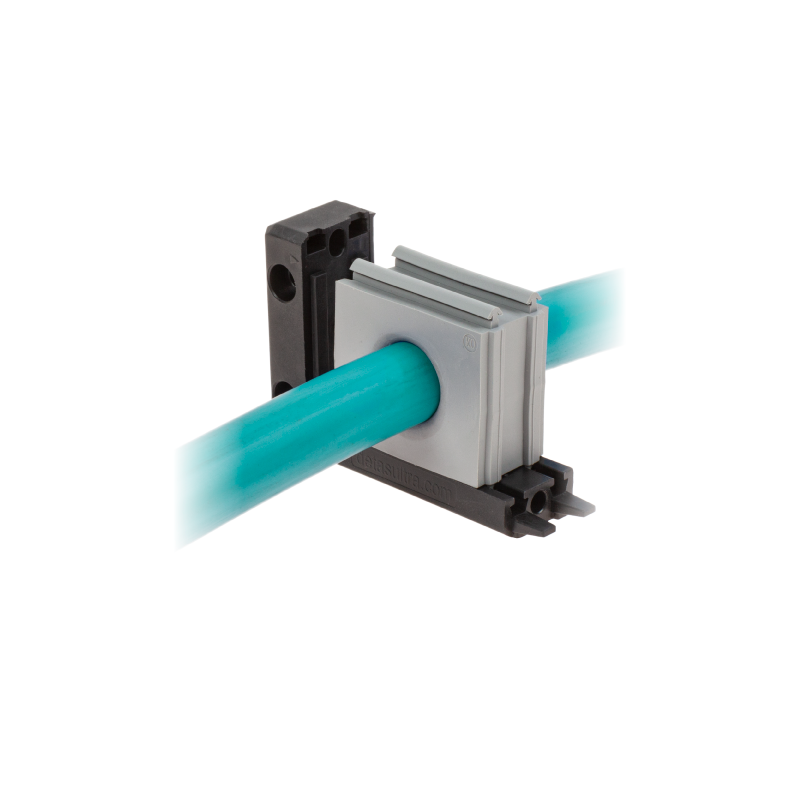

SPG K extended-range blind single cable grommets allow cables without connectors up to 30 mm diameter (K1-K2-K3) to be routed inside the DES series splittable frames.

  • K1, K2 and K3 for single cables with diameters from 16 to 30 mm
  • IP66 for SPG K1, K2 and K3
  • ATEX version on request
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Cable Ø max. [mm]
SPG K0G 1731022300 32
SPG K1G 1731022310 16 ~ 22
SPG K2G 1731022320 23 ~ 26
SPG K3G 1731022330 26 ~ 30
SPG K0B 1731022400 32
SPG K1B 1731022410 16 ~ 22
SPG K2B 1731022420 23 ~ 26
SPG K3B 1731022430 26 ~ 30

Ajánlatkérés küldése

Érdekel ez a termék? További információra vagy egyedi árajánlatra van szüksége?

Lépjen kapcsolatba velünk
Kérdezzen a termékről close
Köszönjük az üzenetét Amint lehet, válaszolunk
Kérdezzen a termékről close
Böngésszen

Add to wishlist

Musisz być zalogowany/a

  • Terméktípus Moduły uszczelniające
  • 26 ~ 30

SPG K extended-range blind single cable grommets allow cables without connectors up to 30 mm diameter (K1-K2-K3) to be routed inside the DES series splittable frames.

  • K1, K2 and K3 for single cables with diameters from 16 to 30 mm
  • IP66 for SPG K1, K2 and K3
  • ATEX version on request
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Cable Ø max. [mm]
SPG K0G 1731022300 32
SPG K1G 1731022310 16 ~ 22
SPG K2G 1731022320 23 ~ 26
SPG K3G 1731022330 26 ~ 30
SPG K0B 1731022400 32
SPG K1B 1731022410 16 ~ 22
SPG K2B 1731022420 23 ~ 26
SPG K3B 1731022430 26 ~ 30
