Gyártó: Artidor

Traffic light Ex AR-044-DP01

  • AR-044-DP01

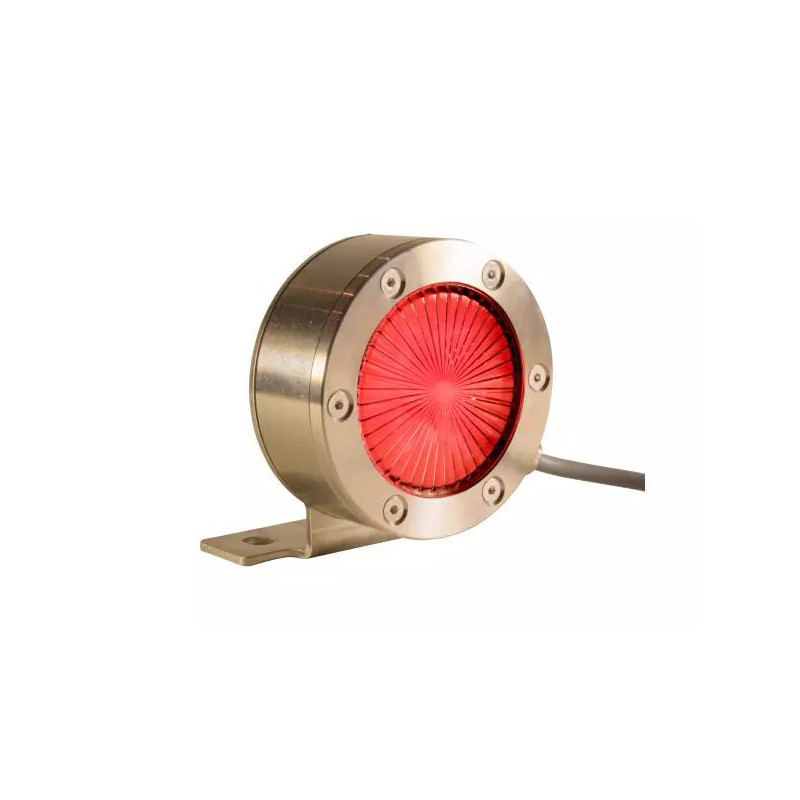

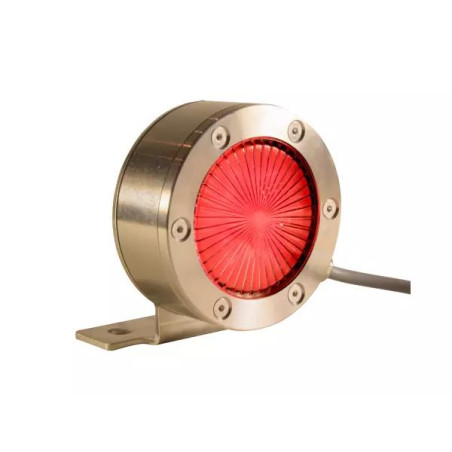

AR-044 — Explosion-proof LED Warning Light

Compact LED warning light for Zones 2/22 (ATEX II 3G/II 3D). AISI 316 stainless steel or anodized aluminum body, 4mm polycarbonate window, IP65 rating. Operates in continuous or 1 Hz flashing mode, 24V DC power supply. The 5m fixed cable facilitates installation on cabinets and machines.

Parameters and functions

  • Ex marking: II 3G Ex mc IIC T4 Gc / II 3D Ex mc IIIC T135°C Dc
  • Source: 15 × LEDs, 195 lm
  • Modes: Continuous or flashing light at 1 Hz (user selectable)
  • Colors: red 625 nm / yellow-orange 610 nm / green 530 nm
  • Power supply: 24 V DC ±10%, current consumption 160 mA (@24 V DC)
  • Mechanical construction: AISI 316 or anodized aluminum; 4 mm PC window; stainless steel mounting bracket.
  • Wiring: 4×0.75 mm² fixed cable, 5 m long; radial or axial cable outlet.
  • Protection degree: IP65 (EN 60529)
  • Operating range: −20…+60 °C.

Technical data.

Explosion-proof markings.II 3G Ex mc IIC T4 Gc; II 3D Ex mc IIIC T135°C Dc
EU Directives2014/34/EU (ATEX 114), 2014/30/EU (EMC)
StandardsEN 60079-0:2018, EN 60079-18:2015/A1:2017
Light ColorRed 625 nm / Yellow-Orange 610 nm / Green 530 nm
Luminous Flux195 lm
Materialhousing AISI 316 or anodized aluminum; 4 mm PC window
Protection classIP65 (EN 60529)
Supply voltage24 V DC ±10%
Rated current160 mA @ 24 V DC
Connectionsolid wire, 4×0.75 mm², length 5 m
Groundingexternal, stainless steel, 4 mm²
Temperature Ambient Temperature -20°C…+60°C Dimensions Ø 95 × 41 mm (without cable gland) Mounting Stainless Steel Bracket Weight 1.61 kg (stainless steel) / 0.83 kg (aluminum) Variants Body Light Color R (red) / Y (yellow-orange) / G (green)
  • Cable outlet: radial or axial
