Gyártó: Artidor

Traffic light Ex AR-048-DP01

  • AR-048-DP01

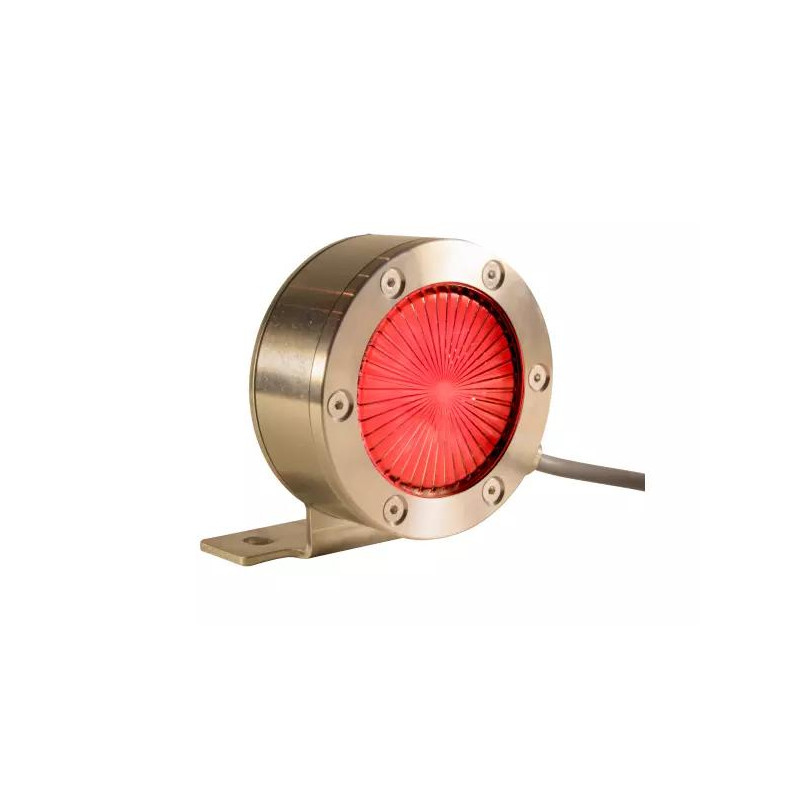

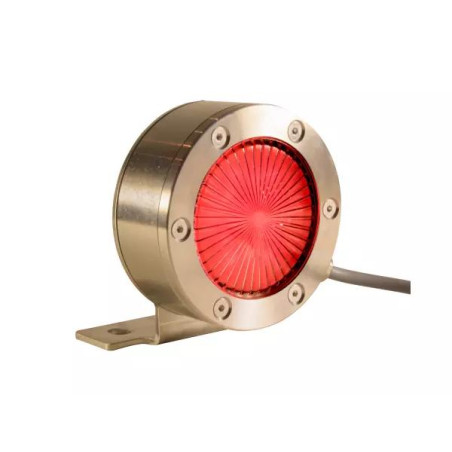

AR-048 — Explosion-proof LED Warning Light

Compact light for zones 1/21 (also 2/22). AISI 316 stainless steel or anodized aluminum body, durable polycarbonate window, O-ring seal, and molded electronics. Continuous or 1 Hz flashing operation. IP65 protection rating, 24–48 V DC power supply. Perfect for cabinets and machines (radial or axial cable outlet).

Parameters and Features

  • ATEX/IECEx: II 2G Ex mb IIC T4 Gb • II 2D Ex mb IIIC T135°C Db
  • Zones: 1, 2, 21, 22
  • Source: LED diodes; 195 lm
  • Modes: Continuous or flashing light 1 Hz (user-selectable)
  • Colors: red 625 nm / yellow-orange 610 nm / green 530 nm
  • Mechanics: AISI 316 or anodized aluminum housing; PC window; stainless steel handle.
  • Wiring: 4×0.75 mm² solid wire, 5 m long; Radial or axial cable outlet
  • Environmental resistance: IP65 (EN 60529), −20…+60 °C

Technical data

Ex markingII 2G Ex mb IIC T4 Gb • II 2D Ex mb IIIC T135°C Db
CertificatesDEKRA 24ATEX0038X (ATEX) • IECEx DEK 24.0027X (IECEx)
EU directives2014/34/EU (ATEX) 114), 2014/30/EU (EMC) Standards: EN IEC 60079-0:2018, EN 60079-18:2015/A1:2017 Luminous flux: 195 lm Colors: Red 625 nm / Yellow 610 nm / Green 530 nm Material: Housing: AISI 316 or anodized aluminum; PC window
Protection classIP65 (EN 60529)
Power supply24–48 V DC ±10% • current 160 mA @ 24 V DC
ConnectionFixed cable 4×0.75 mm², 5 m
GroundingExternal, stainless steel, 4 mm²
Operating temperature−20…+60 °C
DimensionsØ95 × 41 mm (without gland)
MountingStainless steel bracket
Weight1.610 kg (stainless steel) / 0.83 kg (aluminum)
