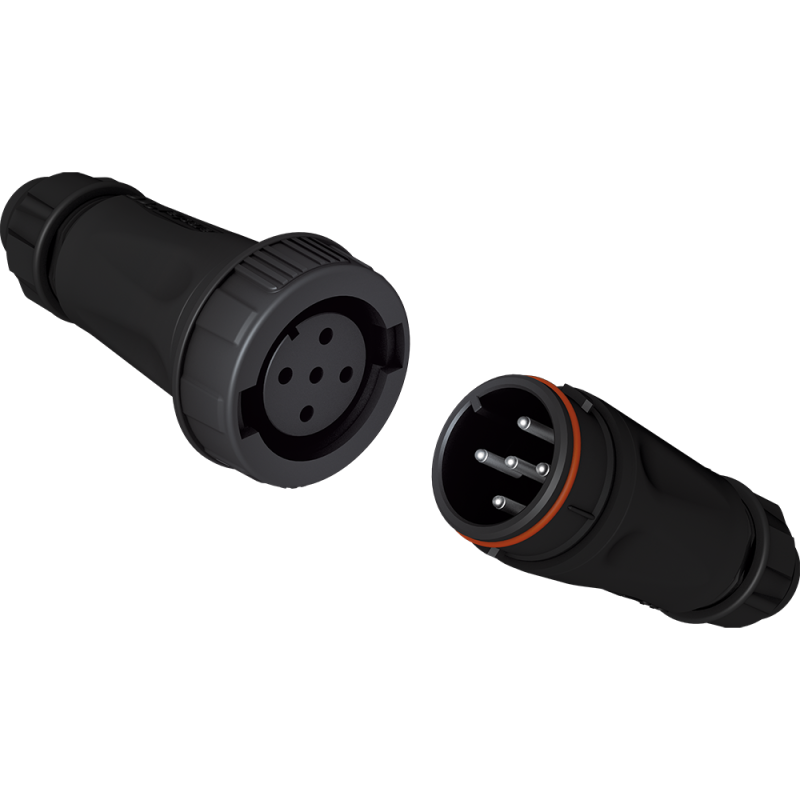

High current connector 16A 480V MAR-PNC

A robust and compact connector that meets all the requirements of aggressive environments (moisture, corrosion, contamination) in both industrial applications and road infrastructure.

Key Features

• Automatic IP66/IP67/IP69 sealing class
• Polycarbonate housing, IK08
• Operating temperature: from -40°C to +100°C

Standards and Certifications

• Compliant with the European Low Voltage Directive (LVD) and RoHS (CE marking) and the European REACH Regulation.
• Compliant with IEC/EN standards 61984, IEC/EN 60529, IEC/EN 62262.
• Certified by the following organizations: TR CU (Russia).
• Ensures compliance of electrical installations with national regulations for worker protection in Belgium, Spain, and Italy.
• Ensures compliance of electrical installations with the electrical installation standards IEC/HD 60364 and NF C 15-100.
