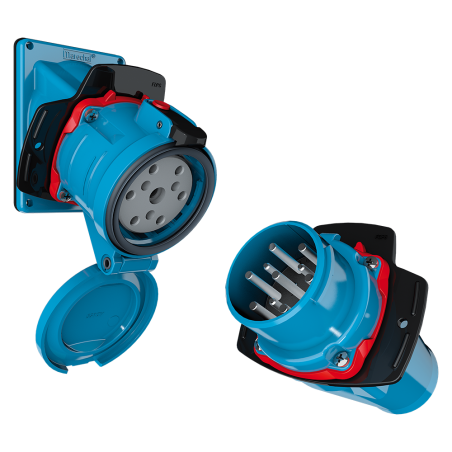

DSP400 MARECHAL Single-Pole Connector (400 A, 500 V) – High Power and Safety

DSP400 single-pole connectors are a safe, reliable, and highly efficient solution designed for applications requiring high continuous power, up to 400 A. They are characterized by their high capacity to absorb frequent overloads. They are ideal for applications requiring fast and reliable high current transmission, as well as in environments where moisture and dust are a risk.

Key Features and Functionality of the DSP400 Connector

The DSP400 series offers maximum electrical performance, combining it with structural strength and advanced safety features such as pilot contacts.

• Electrical parameters: 400 A, 500 V (data from the product specifications).
• Equipped with two pilot contacts for electrical interlocking.
• Automatic IP rating: IP66/IP67 (protection against powerful water jets and immersion).
• Polymer or metal casing, mechanical resistance IK09.
• Operating temperature: from -40 °C to +60 °C.

Compliance with standards and regulations

DSP400 connectors comply with basic European directives, ensuring product compliance with safety and environmental protection requirements.

• Compliance with the European Low Voltage Directive (LVD) and RoHS (CE marking) and the European REACH regulation.
