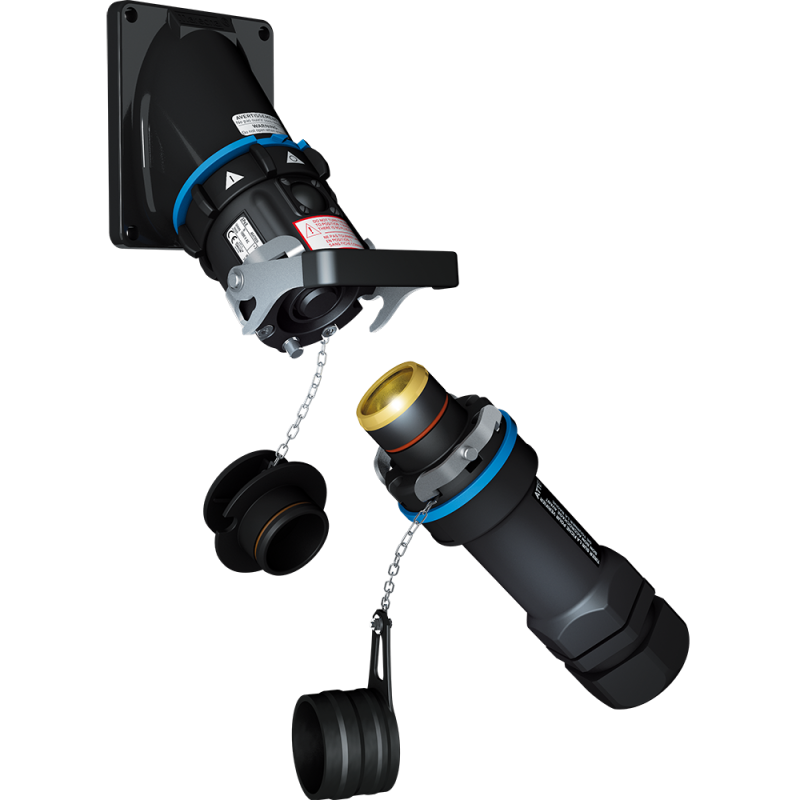

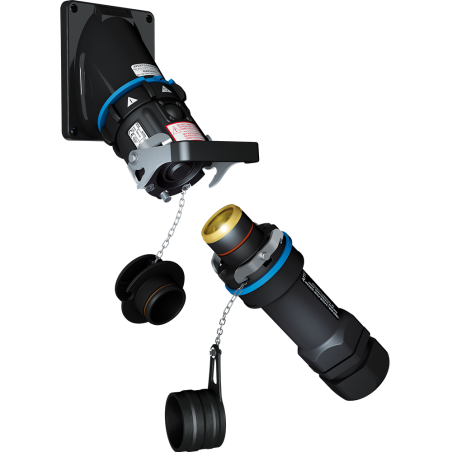

SP MARECHAL Single-Pole Connector (800 A, 1000 V) – Safety and Resistance

SP (Single Pole) single-pole connectors are a safe, reliable, and highly efficient solution designed for applications requiring very high continuous power, up to 800 A and 1000 V. These connectors are characterized by their exceptional ability to absorb frequent overcurrents, up to 10 times the rated current. They are ideal for use in extremely demanding environments, ensuring maximum safety and power stability. The 800 A version is one of the most efficient products in the range.

Key Features and Functionality of the SP Series

The SP Series guarantees the highest electrical performance and safety mechanisms necessary for high-current applications, including advanced interlocking systems and fault detection.

• Electrical Parameters: 800 A, 1000 V (Product Specifications: 750 A for high performance, 800 A in the product title).
• High overcurrent absorption capacity: up to 10 times the rated current.
• Electromechanical Locking System.
• Visual and Mechanical Error Detection.
• Automatic Tightness Class: IP66/IP67 (protection against powerful water jets and immersion).
• Operating temperature: from -40 °C to +60 °C.
• Polymer housing (Poly casing), mechanical resistance IK09.

Compliance with international standards and certifications

SP connectors meet key European directives and are certified by the most important global institutions, enabling their use in the military and marine sectors.

• Compliance with the European Low Voltage Directive (LVD) and RoHS (CE marking) and the European REACH regulation.
• Certification by the following organizations: CSA (Canada), Bureau Veritas Marine, TR CU (Russia), MIL-S-901D (Military).
