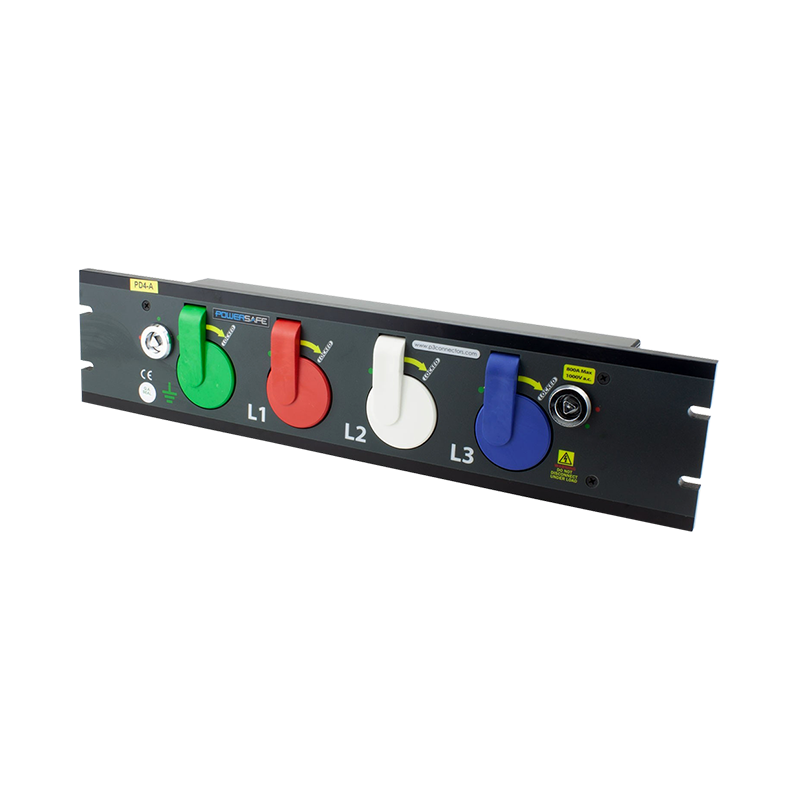

Powersafe 2U Distribution Box

The Powersafe Distribution Box is an electrical connection point for single-pole connectors in three-phase electrical installations with currents up to 800 amps.

Technical Specifications:

• Maximum rated voltage to earth: 2 kV AC
• Rated current: up to 800 A
• Rear terminals: M12 x 25 threaded studs
• Microswitch current rating: 250 V AC / 3 A
• Certification: Manufactured in accordance with ISO 9001:2015

Product Features

800 A current rating

The Phase 3 build quality is unmatched. Our distribution boxes have a high current capacity of up to 800 A.

Cable with M12 connector

Universal connections, such as M12, make this distribution box highly versatile.

Key Lock System

Secure your distribution box with the key lock system.

Remote Control

Each distribution box has a remote control connector.

Mounting Options:

Option 1 - Rack Mount (2U)

Dimensions: Height = 88 mm, Length = 483 mm, Depth = 130 mm

Option 2 - Front Panel Mount (4U)

Dimensions: Height = 108 mm, Length = 483 mm, Depth = 130 mm

Safety Features

The Powersafe box features a sequential connection lockout system (FMLB) that ensures that safety circuits are connected as First in, last out. The key system eliminates the possibility of connection errors.

Compatibility

The Powerlock box accepts Powersafe power connectors and is compatible with products from other manufacturers. This single-pole (1P) electrical device has a rugged design and is suitable for low-voltage power distribution.
